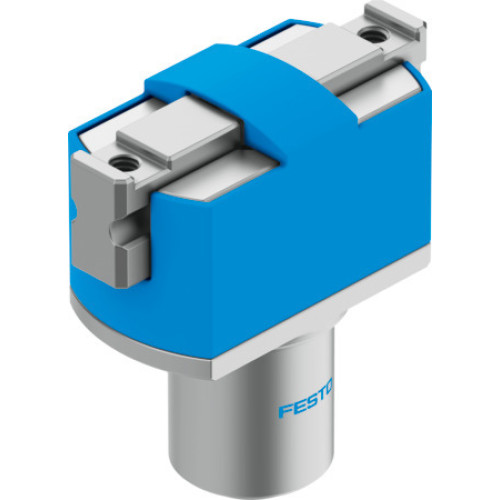

HGPM-12-EO-G8 Parallel gripper

Manufacturer's No: HGPM-12-EO-G8     Manufacturer: Festo
HGPM-12-EO-G8 Parallel gripper

Availability On Request

£286.30
  • Model: HGPM-12-EO-G8 Parallel Gripper
  • Size: 12
  • Gripper Type: Parallel with clamping spigot
  • Stroke per Gripper Jaw: 3 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Rotationally Symmetrical: 0.15 mm
  • Repetition Accuracy: <= 0.05 mm
  • Gripper Jaws: 2
  • Drive System: Pneumatic, Single-acting
  • Gripper Function: Parallel, Wedge-shaped Drive

Read more

  • Operating Pressure: 4 BAR (Min), 8 BAR (Max)
  • Gripper Frequency: 4 HZ
  • Opening Time at 0.6 MPa: 11 MS
  • Closing Time at 0.6 MPa: 3.7 MS
  • Gripper Force: 27 N (Total), 13.5 N per Jaw
  • Mass per External Gripper Finger: 15 g
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: CRC 1 (Low corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: 5°C (Min), 60°C (Max)
  • Mass Moment of Inertia: 0.04252 kgcm²
  • Max. Force on Gripper Jaw: 30 N
  • Max. Torque at Gripper: 0.5 Nm (X, Y, Z static)
  • Product Weight: 41 g
  • Mounting: Clamped
  • Pneumatic Connection: M3
  • Materials: RoHS-compliant, POM (Cover Cap), Anodised Wrought Aluminium Alloy (Housing), High-alloy Steel (Gripper Jaws)


Product

Manufacturer Material ID -
HGPM-12-EO-G8
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
