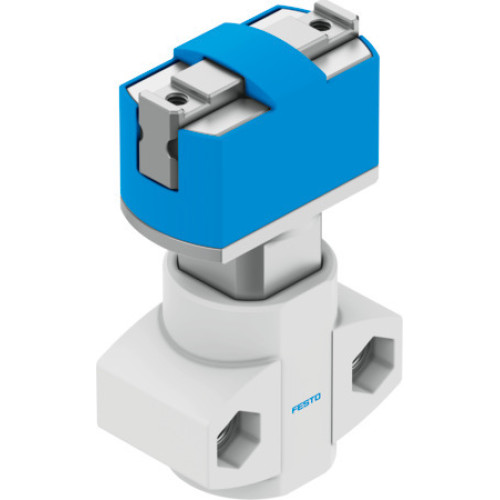

HGPM-12-EZ-G6 Parallel gripper

Manufacturer's No: HGPM-12-EZ-G6     Manufacturer: Festo
HGPM-12-EZ-G6 Parallel gripper

Availability On Request

£394.86
  • Model: HGPM-12-EZ-G6 Parallel Gripper with Micro Stroke Compensation
  • Size: 12
  • Stroke per Gripper Jaw: 3 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Repetition Accuracy: <= 0.05 mm
  • Gripper Fingers: 2
  • Drive System: Pneumatic
  • Gripper Function: Parallel
  • Design: Wedge-shaped Drive
  • Operating Pressure: 4 BAR, 8 BAR

Read more

  • Gripper Force: 35 N (closing), 17.5 N per jaw (opening)
  • Gripper Mass: 62 g
  • Gripper Speed: 4 HZ
  • Gripper Opening Time: 3 ms at 0.6 MPa
  • Gripper Closing Time: 8.3 ms at 0.6 MPa
  • Material: Anodised Wrought Aluminium Alloy (Housing), High-alloy Steel (Jaws)
  • Mounting: With Through-hole
  • Pneumatic Connection: M3
  • Corrosion Resistance: Low Corrosion Stress (CRC: 1)
  • Operating Temperature: 5°C to 60°C
  • RoHS-compliant Materials
  • Spring Force of Stroke Compensator: 10 N (min), 23 N (max)
  • Gripper Backlash: 0.03 mm (Sz), 0.5° (ax, ay)
  • Mass Moment of Inertia: 0.06674 kgcm
  • Max. Force on Gripper Jaw: 30 N
  • Max. Torque at Gripper: 0.5 Nm (Mx, My, Mz)


Product

Manufacturer Material ID -
HGPM-12-EZ-G6
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
