HGPP-16-A Parallel gripper

Manufacturer's No: HGPP-16-A     Manufacturer: Festo

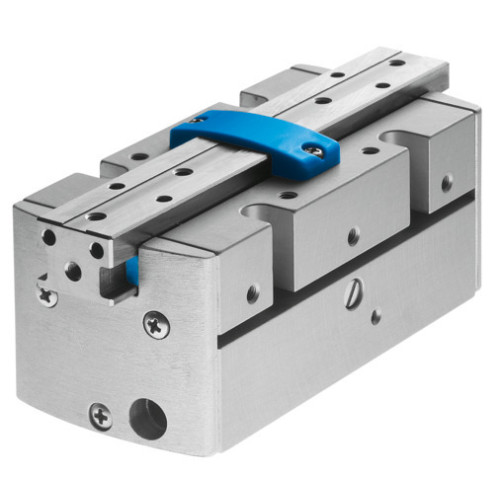

HGPP-16-A Parallel gripper

Availability On Request

£982.70
  • Model: HGPP-16-A
  • Gripper Type: Parallel
  • Size: 16
  • Stroke per Gripper Jaw: 5 mm
  • Max. Replacement Accuracy: 0.1 mm
  • Repetition Accuracy: <= 0.02 mm
  • Number of Gripper Fingers: 2
  • Drive System: Pneumatic
  • Operating Pressure: 2 BAR to 8 BAR
  • Gripper Force: 204 N (opening and closing), 102 N per gripper jaw

Read more

  • Gripper Function: Parallel
  • Position Detection: Hall Effect Sensor, Inductive Sensors
  • Operating Frequency: 4 HZ
  • Opening Time: 40 MS at 0.6 MPa
  • Closing Time: 53 MS at 0.6 MPa
  • Gripper Mass: 315 g
  • Material: Housing - Hard Anodised Wrought Aluminium Alloy, Gripper Jaws - Wrought Aluminium Alloy (Nickel-Plated)
  • Mounting: Female Thread
  • Pneumatic Connection: M5
  • Corrosion Resistance: Moderate (CRC: 2)
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 2.39 kgcm²
  • Max. Force on Gripper Jaw: 130 N
  • Max. Torque at Gripper: 7 Nm (static)
  • Product Weight: 315 g
  • RoHS-Compliant Materials: POM (Cover Cap)


Product

Manufacturer Material ID -
HGPP-16-A
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
