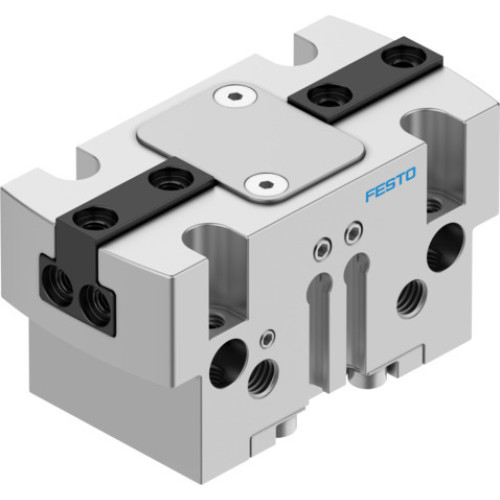

HGPT-20-A-B-F Parallel gripper

Manufacturer's No: HGPT-20-A-B-F     Manufacturer: Festo
HGPT-20-A-B-F Parallel gripper

Availability On Request

£631.73
  • Model: HGPT-20-A-B-F Parallel Gripper
  • Size: 20
  • Stroke per gripper jaw: 2 mm
  • Max. replacement accuracy: ? 0.2 mm
  • Max. angular gripper jaw backlash ax, ay: ? 0.1 deg
  • Max. gripper jaw backlash Sz: ? 0.02 mm
  • Rotationally symmetrical: 0.2 mm
  • Repetition accuracy, gripper: 0.04 mm
  • Number of gripper jaws: 2
  • Drive system: Pneumatic

Read more

  • Mounting position: Optional
  • Mode of operation: Double-acting
  • Gripper function: Parallel
  • Design: Wedge-shaped drive, Force pilot operated motion sequence
  • Position detection: Via proximity switch
  • Operating pressure: 3 BAR (min), 8 BAR (max)
  • Operating pressure of blocked air: 0 BAR (min), 0.5 BAR (max)
  • Max. operating frequency of gripper: 3 HZ
  • Min. opening time at 0.6 MPa: 28 MS
  • Min. closing time at 0.6 MPa: 31 MS
  • Max. mass per external gripper finger: 50 g
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Degree of protection: IP40
  • Ambient temperature: 5°C (min), 60°C (max)
  • Total gripping force: 344 N (opening), 322 N (closing)
  • Gripper force per gripper jaw: 172 N (opening), 161 N (closing)
  • Mass moment of inertia: 0.344 kgcm²
  • Max. force on gripper jaw Fz static: 700 N
  • Max. torque at gripper: 15 Nm (Mx static), 15 Nm (My static), 8 Nm (Mz static)
  • Lubrication interval for guide components: 5 years
  • Product weight: 135 g
  • Type of mounting: Via female thread and centring sleeve, Via through-hole and centring sleeve, Via through-hole and dowel pin, Via female thread and dowel pin, Either
  • Pneumatic connection: M5
  • Note on materials: RoHS-compliant
  • Material cover cap: High-alloy stainless steel
  • Material housing: Anodised aluminium
  • Material gripper jaws: Hardened steel
