560207

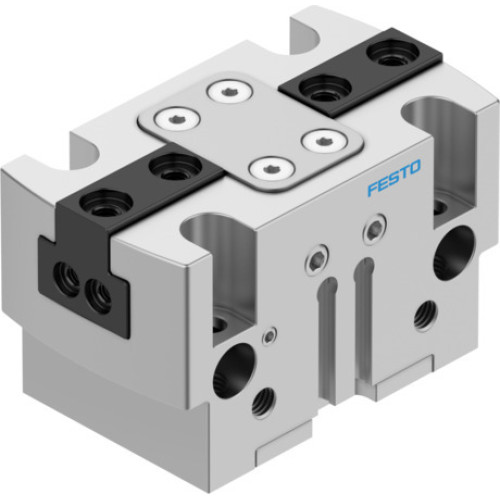

HGPT-25-A-B-F Parallel gripper

Manufacturer's No: HGPT-25-A-B-F     Manufacturer: Festo
HGPT-25-A-B-F Parallel gripper

Availability Back Order

£671.24
  • Model: HGPT-25-A-B-F Parallel Gripper
  • Size: 25
  • Gripper Jaw Stroke: 3mm
  • Max. Replacement Accuracy: ? 0.2mm
  • Max. Angular Gripper Jaw Backlash: ? 0.1 deg
  • Max. Gripper Jaw Backlash: ? 0.02mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic
  • Mounting Position: Optional
  • Mode of Operation: Double-acting

Read more

  • Gripper Function: Parallel
  • Design: Wedge-shaped Drive, Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 3 BAR (Normal), 8 BAR (Max)
  • Operating Pressure of Blocked Air: 0 BAR (Normal), 0.5 BAR (Max)
  • Max. Operating Frequency: 3 HZ
  • Opening Time at 0.6 MPa: 25ms
  • Closing Time at 0.6 MPa: 32ms
  • Operating Medium: Compressed Air (ISO 8573-1:2010 [7:4:4])
  • Corrosion Resistance Class: 2 (Moderate Corrosion Stress)
  • Degree of Protection: IP40
  • Ambient Temperature: 5°C (Min), 60°C (Max)
  • Total Gripping Force: 476N (Opening), 442N (Closing)
  • Gripper Force per Jaw: 238N (Opening), 221N (Closing)
  • Mass Moment of Inertia: 0.983 kgcm²
  • Max. Force on Gripper Jaw: 1200N
  • Max. Torque at Gripper: 50Nm (Mx), 45Nm (My), 35Nm (Mz)
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 266g
  • Type of Mounting: Female Thread, Centring Sleeve, Through-hole, Dowel Pin
  • Pneumatic Connection: M5
  • RoHS-compliant Materials: High-alloy Stainless Steel (Cover Cap), Anodised Aluminium (Housing), Hardened Steel (Gripper Jaws)

Accessories

PUN-H-6X1-BL 6MM PLASTIC TUBING

Product Code - 197384
Price £1.09
Back Order

FESTO PUSH-IN FITTING

Product Code - 153306
Price £2.63
Back Order

QSML-M5-6 PUSH-IN L-FITTING

Product Code - 153335
Price £3.66
Back Order

ZBH-7-B Centring sleeve

Product Code - 8146544
Price £1.32
Back Order

ZBH-5-B Centring sleeve

Product Code - 8146543
Price £1.32
Back Order

PUN-H-6X1-NT 6MM PLASTIC TUBING

Product Code - 197377
Price £1.09
Back Order


Product

Manufacturer Material ID -
HGPT-25-A-B-F
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability Back Order

£671.24
