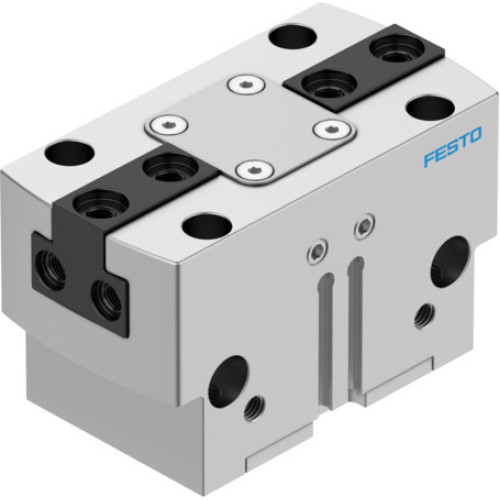

HGPT-35-A-B-F Parallel gripper

Manufacturer's No: HGPT-35-A-B-F     Manufacturer: Festo
HGPT-35-A-B-F Parallel gripper

Availability On Request

£737.05
  • Model: HGPT-35-A-B-F
  • Gripper Size: 35
  • Stroke per Gripper Jaw: 4 mm
  • Max. Replacement Accuracy: ? 0.2 mm
  • Max. Angular Gripper Jaw Backlash: ? 0.1 deg
  • Max. Gripper Jaw Backlash: ? 0.02 mm
  • Gripper Force: 1000 N (Opening), 934 N (Closing)
  • Gripper Force per Jaw: 500 N (Opening), 467 N (Closing)
  • Drive System: Pneumatic
  • Operating Pressure: 3 BAR (Normal), 8 BAR (Max)

Read more

  • Operating Frequency: 3 HZ
  • Gripper Type: Parallel
  • Design: Wedge-shaped Drive, Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Corrosion Resistance Class: 2 (Moderate)
  • Degree of Protection: IP40
  • Operating Temperature: 5 to 60 degrees Celsius
  • Gripper Mass: 490 g
  • Material: High-Alloy Stainless Steel (Cover Cap), Anodised Aluminium (Housing), Hardened Steel (Jaws)
  • Mounting Options: Female Thread, Centring Sleeve, Through-Hole, Dowel Pin
  • Pneumatic Connection: M5
  • Lubrication Interval: 5 years
  • RoHS-Compliant Materials


Product

Manufacturer Material ID -
HGPT-35-A-B-F
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£737.05
