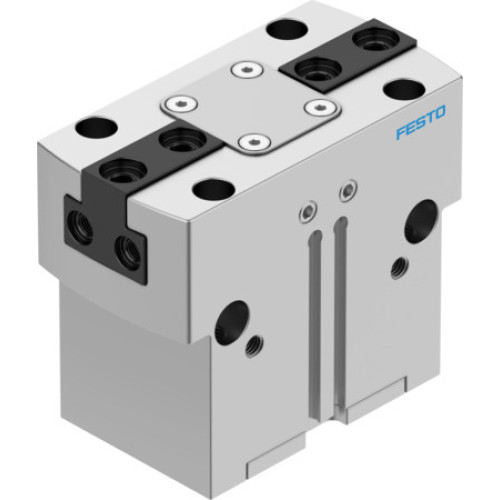

HGPT-35-A-B-F-G2 Parallel gripper

Manufacturer's No: HGPT-35-A-B-F-G2     Manufacturer: Festo
HGPT-35-A-B-F-G2 Parallel gripper

Availability On Request

£789.65
  • Model: HGPT-35-A-B-F-G2
  • Gripping Force Retention: Yes
  • Size: 35
  • Stroke per Gripper Jaw: 4 mm
  • Max. Replacement Accuracy: <= 0.2 mm
  • Max. Angular Gripper Jaw Backlash Ax, Ay: <= 0.1 deg
  • Max. Gripper Jaw Backlash Sz: <= 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.05 mm
  • Number of Gripper Jaws: 2

Read more

  • Drive System: Pneumatic
  • Mounting Position: Optional
  • Mode of Operation: Double-Acting
  • Gripper Function: Parallel
  • Gripper Force Back-Up: During Closing
  • Design: Wedge-Shaped Drive, Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 4 BAR (Normal), 8 BAR (Blocked Air)
  • Max. Operating Frequency of Gripper: 3 HZ
  • Min. Opening Time at 0.6 MPa: 63 MS
  • Min. Closing Time at 0.6 MPa: 72 MS
  • Max. Mass per External Gripper Finger: 180 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 2 (Moderate Corrosion Stress)
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Degree of Protection: IP40
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 3.974 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 1800 N
  • Max. Torque at Gripper Mx Static: 80 Nm
  • Max. Torque at Gripper My Static: 60 Nm
  • Max. Torque at Gripper Mz Static: 50 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 567 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-Hole, Dowel Pin
  • Pneumatic Connection: M5
  • Materials: RoHS-Compliant, High-Alloy Stainless Steel (Cover Cap), Anodised Aluminium (Housing), Hardened Steel (Gripper Jaws)


Product

Manufacturer Material ID -
HGPT-35-A-B-F-G2
Net Weight -
0.62kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£789.65
