560219

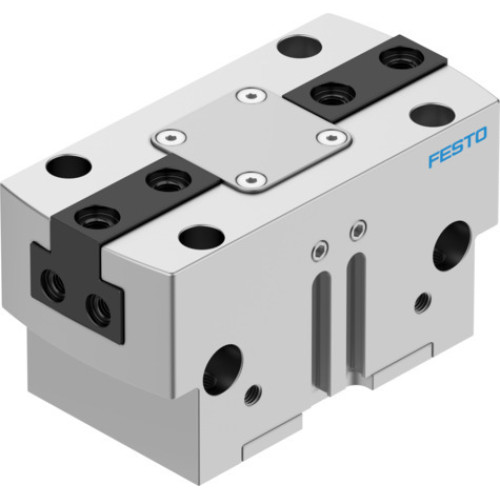

HGPT-40-A-B-F Parallel gripper

Manufacturer's No: HGPT-40-A-B-F     Manufacturer: Festo
HGPT-40-A-B-F Parallel gripper

Availability On Request

£848.81
  • Model: HGPT-40-A-B-F Parallel Gripper
  • Size: 40
  • Gripper Jaw Stroke: 5 mm
  • Max. Replacement Accuracy: ? 0.2 mm
  • Max. Angular Gripper Jaw Backlash: ? 0.1 deg
  • Max. Gripper Jaw Backlash: ? 0.02 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic
  • Operating Pressure: 3 BAR (min), 8 BAR (max)
  • Operating Pressure of Blocked Air: 0 BAR (min), 0.5 BAR (max)

Read more

  • Gripper Function: Parallel
  • Design: Wedge-shaped Drive, Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: CRC 2 - Moderate Corrosion Stress
  • Degree of Protection: IP40
  • Ambient Temperature: 5°C (min), 60°C (max)
  • Total Gripping Force: 1446 N (opening), 1328 N (closing)
  • Gripper Force per Gripper Jaw: 723 N (opening), 674 N (closing)
  • Mass Moment of Inertia: 7.277 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 2500 N
  • Max. Torque at Gripper: 100 Nm (Mx static), 90 Nm (My static), 75 Nm (Mz static)
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 821 g
  • Type of Mounting: Via Female Thread and Centring Sleeve, Via Through-hole and Dowel Pin, Either
  • Pneumatic Connection: M5
  • RoHS-compliant Materials: High-alloy Stainless Steel (Cover Cap), Anodised Aluminium (Housing), Hardened Steel (Gripper Jaws)


Product

Manufacturer Material ID -
HGPT-40-A-B-F
Net Weight -
0.82kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
