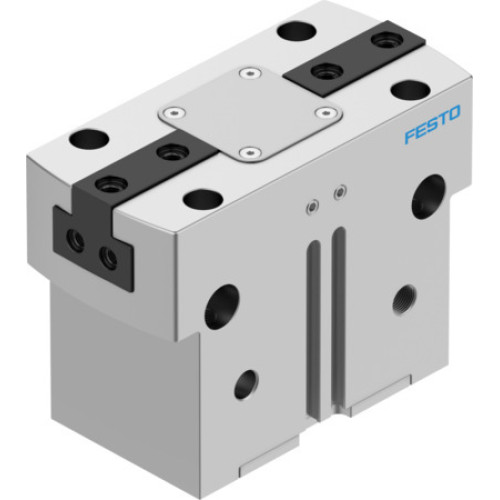

HGPT-50-A-B-G2 Parallel gripper

Manufacturer's No: HGPT-50-A-B-G2     Manufacturer: Festo
HGPT-50-A-B-G2 Parallel gripper

Availability On Request

£1,079.11
  • Model: HGPT-50-A-B-G2
  • Gripping Force Retention: Yes
  • Size: 50
  • Stroke per Gripper Jaw: 12 mm
  • Max. Replacement Accuracy: ? 0.2 mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): ? 0.1 deg
  • Max. Gripper Jaw Backlash (Sz): ? 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.05 mm
  • Number of Gripper Jaws: 2

Read more

  • Drive System: Pneumatic
  • Mounting Position: Optional
  • Mode of Operation: Double-Acting
  • Gripper Function: Parallel
  • Gripper Force Backup: During Closing
  • Design: Wedge-Shaped Drive
  • Design: Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 4 BAR (normal), 8 BAR (blocked air)
  • Max. Operating Frequency: 2 HZ
  • Min. Opening Time at 0.6 MPa: 151 ms
  • Min. Closing Time at 0.6 MPa: 77 ms
  • Max. Mass per External Gripper Finger: 640 g
  • Operating Medium: Compressed Air (ISO 8573-1:2010 [7:4:4])
  • Corrosion Resistance Class: 2 (Moderate Corrosion Stress)
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Degree of Protection: IP40
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 29.423 kgcm²
  • Max. Force on Gripper Jaw (Fz Static): 3200 N
  • Max. Torque at Gripper (Mx, My, Mz Static): 120 Nm, 120 Nm, 100 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 1832 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-Hole, Dowel Pin
  • Pneumatic Connection: M5 (blocked air), G1/8
  • RoHS-Compliant Materials
  • Material: Cover Cap (High-Alloy Stainless Steel), Housing (Anodised Aluminium), Gripper Jaws (Hardened Steel)


Product

Manufacturer Material ID -
HGPT-50-A-B-G2
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
