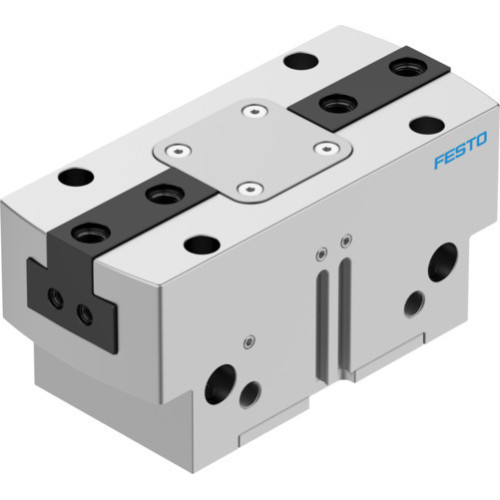

HGPT-63-A-B-F Parallel gripper

Manufacturer's No: HGPT-63-A-B-F     Manufacturer: Festo
HGPT-63-A-B-F Parallel gripper

Availability On Request

£1,368.93
  • Model: HGPT-63-A-B-F Parallel Gripper
  • Size: 63
  • Gripper Jaw Stroke: 8 mm
  • Max. Replacement Accuracy: ? 0.2 mm
  • Max. Angular Gripper Jaw Backlash: ? 0.1 deg
  • Max. Gripper Jaw Backlash: ? 0.02 mm
  • Gripper Force: 1885 N per jaw (opening), 1791 N per jaw (closing)
  • Total Gripping Force: 3770 N (opening), 3522 N (closing)
  • Drive System: Pneumatic
  • Operating Pressure: 3 BAR (normal), 8 BAR (max)

Read more

  • Operating Frequency: 2 HZ
  • Gripper Function: Parallel
  • Design: Wedge-shaped drive, Force pilot operated motion sequence
  • Position Detection: Via proximity switch
  • Corrosion Resistance Class: 2 (Moderate corrosion stress)
  • Degree of Protection: IP40
  • Operating Temperature: 5 to 60 degrees Celsius
  • Mass Moment of Inertia: 60.903 KGC
  • Max. Force on Gripper Jaw: 5000 N
  • Max. Torque at Gripper: 160 NM (Mx), 180 NM (My), 140 NM (Mz)
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 2712 g
  • Materials: High-alloy stainless steel (cover cap), Anodised aluminium (housing), Hardened steel (gripper jaws)
  • Mounting: Via female thread, centring sleeve, through-hole, dowel pin
  • Pneumatic Connection: M5 (blocked air), G1/8
  • RoHS-Compliant Materials


Product

Manufacturer Material ID -
HGPT-63-A-B-F
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
