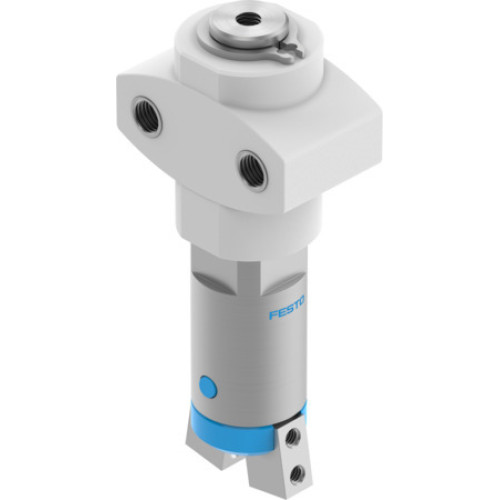

HGWM-08-EO-G6 Angle gripper

Manufacturer's No: HGWM-08-EO-G6     Manufacturer: Festo
HGWM-08-EO-G6 Angle gripper

Availability On Request

£212.06
  • Model: HGWM-08-EO-G6 Angle Gripper with Micro Stroke Compensation
  • Size: 8
  • Gripper Type: Angle with Wedge-shaped Drive
  • Number of Gripper Jaws: 2
  • Max. Angular Gripper Jaw Backlash: 0.5 degrees
  • Max. Gripper Jaw Backlash: 0.03 mm
  • Max. Opening Angle: 17 degrees
  • Repetition Accuracy: <= 0.02 mm
  • Drive System: Pneumatic, Single-acting
  • Gripper Force Back-up: None

Read more

  • Operating Pressure: 2 BAR to 8 BAR
  • Max. Operating Frequency: 4 HZ
  • Min. Opening Time at 0.6 MPa: 2.7 MS
  • Min. Closing Time at 0.6 MPa: 1.2 MS
  • Operating Medium: Compressed air (ISO 8573-1:2010)
  • Corrosion Resistance Class: CRC 2 (Moderate corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: 5°C to 60°C
  • Spring Force of Stroke Compensator: 4 N to 6 N
  • Spring Return Moment: 0.005 NCM
  • Total Gripper Torque at Closing: 22 NCM
  • Mass Moment of Inertia: 70.5 KGC
  • Max. Force on Gripper Jaw: 7 N
  • Max. Torque at Gripper: 0.2 NCM (Mx, My, Mz static)
  • Max. Mass per External Gripper Finger: 400 G
  • Product Weight: 23 G
  • Type of Mounting: Via Female Thread
  • Pneumatic Connection: M3
  • Materials: RoHS-compliant; Cover Cap (POM), Housing (High-alloy Stainless Steel), Gripper Jaws (High-alloy Steel)


Product

Manufacturer Material ID -
HGWM-08-EO-G6
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
