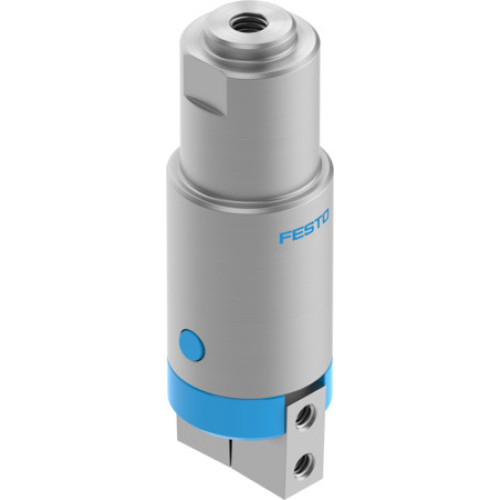

HGWM-08-EZ-G8 Angle gripper

Manufacturer's No: HGWM-08-EZ-G8     Manufacturer: Festo
HGWM-08-EZ-G8 Angle gripper

Availability On Request

£161.68
  • Model: HGWM-08-EZ-G8 Angle Gripper Micro with clamping spigot
  • Size: 8
  • Max. Angular Gripper Jaw Backlash: 0.5 degrees
  • Max. Gripper Jaw Backlash: 0.03 mm
  • Max. Opening Angle: 14 degrees
  • Repetition Accuracy: <= 0.02 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic
  • Mode of Operation: Single-acting, Closed
  • Gripper Function: Angle

Read more

  • Design: Wedge-shaped Drive
  • Operating Pressure: 2 BAR to 8 BAR
  • Max. Operating Frequency: 4 HZ
  • Min. Opening Time at 0.6 MPa: 1 MS
  • Min. Closing Time at 0.6 MPa: 2.5 MS
  • Operating Medium: Compressed air to ISO 8573-1:2010
  • Corrosion Resistance Class: 2 (Moderate corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: 5°C to 60°C
  • Spring Return Moment: 0.006 NCM
  • Total Gripping Torque at 0.6 MPa: 24 NCM
  • Mass Moment of Inertia: 25.2 KGC, Per External Gripper Finger: 250 KGC
  • Max. Force on Gripper Jaw Fz Static: 7 N
  • Max. Torque at Gripper Mx, My, Mz Static: 0.2 NCM
  • Max. Mass per External Gripper Finger: 400 G
  • Product Weight: 13 G
  • Type of Mounting: Clamped
  • Pneumatic Connection: M3
  • Materials: RoHS-compliant, Cover Cap: POM, Housing: High-alloy Stainless Steel, Gripper Jaws: High-alloy Steel


Product

Manufacturer Material ID -
HGWM-08-EZ-G8
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£161.68
