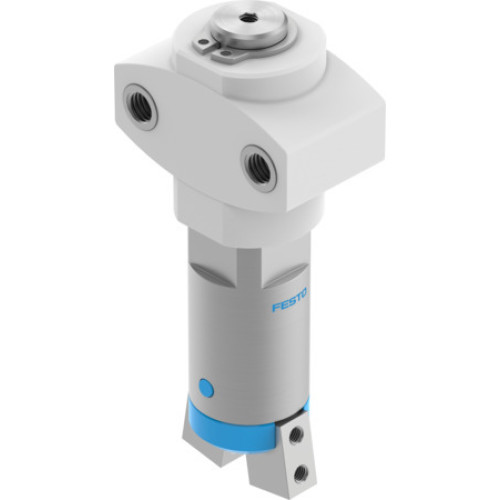

HGWM-12-EO-G6 Angle gripper

Manufacturer's No: HGWM-12-EO-G6     Manufacturer: Festo
HGWM-12-EO-G6 Angle gripper

Availability On Request

£250.95
  • Model: HGWM-12-EO-G6 Angle Gripper with Micro Stroke Compensation
  • Size: 12
  • Gripper Jaw Backlash: 0.5 degrees (ax, ay) and 0.03 mm (Sz)
  • Max. Opening Angle: 18.5 degrees
  • Repetition Accuracy: <= 0.02 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic
  • Operating Pressure: 2 BAR (min) to 8 BAR (max)
  • Gripper Function: Angle with Wedge-shaped Drive Design
  • Operating Frequency: 4 HZ

Read more

  • Opening Time at 0.6 MPa: 3.7 MS
  • Closing Time at 0.6 MPa: 1.8 MS
  • Corrosion Resistance Class: CRC 2 - Moderate Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: 5°C (min) to 60°C (max)
  • Spring Force of Stroke Compensator: 10 N to 23 N
  • Spring Return Moment: 0.013 NCM
  • Total Gripper Torque: 64 NCM
  • Mass Moment of Inertia: 421 KGC
  • Max. Force on Gripper Jaw: 20 N
  • Max. Torque at Gripper: 0.4 NCM (Mx, My, Mz static)
  • Max. Mass per External Gripper Finger: 1000 G
  • Product Weight: 75 G
  • Mounting: Via Female Thread
  • Pneumatic Connection: M3
  • Materials: RoHS-compliant; Cover Cap - POM, Housing - High-alloy Stainless Steel, Gripper Jaws - High-alloy Steel


Product

Manufacturer Material ID -
HGWM-12-EO-G6
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£250.95
