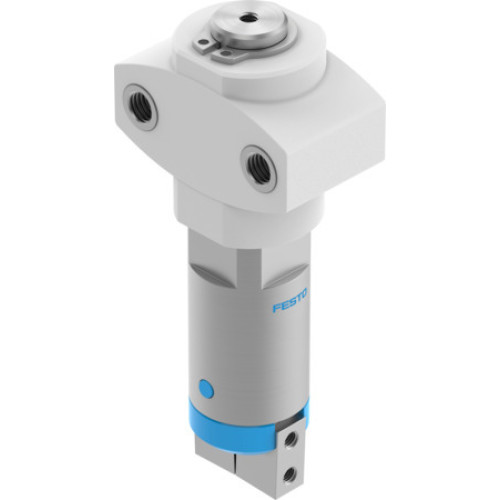

HGWM-12-EZ-G6 Angle gripper

Manufacturer's No: HGWM-12-EZ-G6     Manufacturer: Festo
HGWM-12-EZ-G6 Angle gripper

Availability On Request

£250.95
  • Model: HGWM-12-EZ-G6 Angle Gripper Micro with stroke compensation
  • Size: 12
  • Max. Angular Gripper Jaw Backlash: 0.5 degrees
  • Max. Gripper Jaw Backlash: 0.03 mm
  • Max. Opening Angle: 14 degrees
  • Repetition Accuracy: <= 0.02 mm
  • Number of Gripper Jaws: 2
  • Gripper Function: Angle
  • Design: Wedge-shaped drive
  • Operating Pressure: 2 BAR to 8 BAR

Read more

  • Max. Operating Frequency: 4 HZ
  • Min. Opening Time at 0.6 MPa: 1.7 ms
  • Min. Closing Time at 0.6 MPa: 2.8 ms
  • Operating Medium: Compressed air to ISO 8573-1:2010
  • Corrosion Resistance Class: 2 (Moderate corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: 5°C to 60°C
  • Spring Force of Stroke Compensator: 10 N to 23 N
  • Spring Return Moment: 0.015 NCM
  • Total Gripping Torque at 0.6 MPa: 76 NCM
  • Mass Moment of Inertia: 421 KGC
  • Max. Force on Gripper Jaw Fz Static: 20 N
  • Max. Torque at Gripper Mx, My, Mz Static: 0.4 NCM
  • Max. Mass per External Gripper Finger: 1000 g
  • Product Weight: 75 g
  • Type of Mounting: Via female thread
  • Pneumatic Connection: M3
  • Material: Cover Cap - POM, Housing - High-alloy stainless steel, Gripper Jaws - High-alloy steel


Product

Manufacturer Material ID -
HGWM-12-EZ-G6
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
