50150314

Special version: Extra long light spot (XL); Operating range limit: 0 ... 0.6 m; Light source: LED, Red; Shift angle: Typ. ±

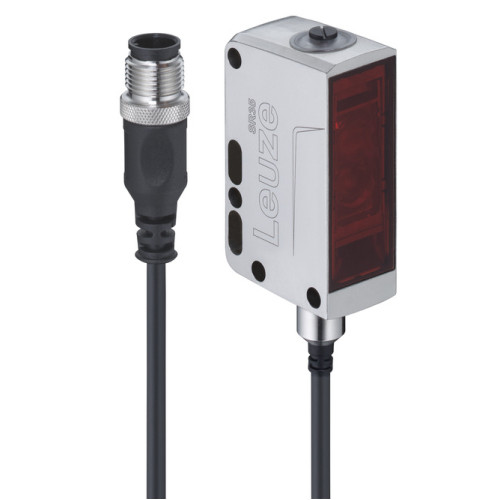

Manufacturer's No: HT35C.XL/LG-200-M12     Manufacturer: Leuze
Special version: Extra long light spot (XL); Operating range limit: 0 ... 0.6 m; Light source: LED, Red; Shift angle: Typ. ± 2°; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s

Availability Back Order

£206.00
  • Special Version: Extra long light spot (XL)
  • Operating Range Limit: 0 ... 0.6 m
  • Light Source: LED, Red
  • Shift Angle: Typ. ± 2°
  • Supply Voltage: 10 ... 30 V, DC
  • Digital Switching Outputs: 2 Piece(s)

  • Switching Output 1: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN)

  • Switching Output 2: Transistor, Push-pull, Dark switching (PNP)/light switching (NPN)

  • Switching Frequency: 1,000 Hz
  • Interface: IO-Link

Read more

  • Connection: Connector, 200 mm, M12, Stainless steel, 4-pin
  • Design, Housing: Cubic
  • Dimensions: 18.8 mm x 55.3 mm x 32.4 mm
  • Housing Material: Stainless steel
  • Operational Controls: Multiturn potentiometer
  • Ambient Temperature, Operation: -40 ... 70 °C
  • Degree of Protection: IP 67, IP 68, IP 69K


Product

Manufacturer Material ID -
HT35C.XL/LG-200-M12
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
32121702
Leuze

Availability Back Order

£206.00
Sign in or Register for customer prices.

Additional Information

Data Sheets
