50147091

Operating range limit: 0.01 ... 2.5 m; Light source: LED, Infrared; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1

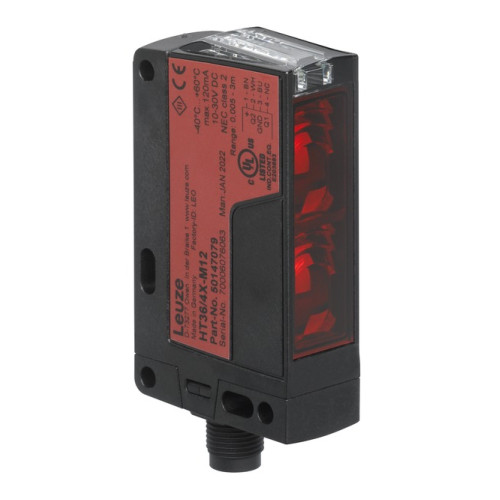

Manufacturer's No: HT36I/4X-M12     Manufacturer: Leuze
Operating range limit: 0.01 ... 2.5 m; Light source: LED, Infrared; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, PNP, Light switching; Switc

Availability On Request

£113.00
  • Operating Range: 0.01m to 2.5m
  • Light Source: LED, Infrared
  • Supply Voltage: 10V to 30V DC
  • Digital Switching Outputs: 1
  • Switching Output Type: Transistor, PNP, Light switching
  • Switching Frequency: 250Hz
  • Connection: M12 Plastic Connector, 4-pin
  • Housing Design: Cubic
  • Dimensions: 20.5mm x 76.3mm x 44mm
  • Housing Material: Plastic

Read more

  • Operational Controls: Multiturn Potentiometer
  • Ambient Temperature Range: -40°C to 60°C
  • Degree of Protection: IP67

Accessories



Product

Manufacturer Material ID -
HT36I/4X-M12
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Adjustment range -
150 Millimetre
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
76.3 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
44 Millimetre
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Maximum output current -
100 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operating distance -
10 Millimetre
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Reaction time -
2 Millisecond
Sensing mode -
Light switching
Setting procedure -
Manual adjustment
Switching frequency -
250 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Triangulation -
Background fade-out
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
860 Nanometre
Width sensor -
20.5 Millimetre
Leuze

Availability On Request

£113.00
