50141703

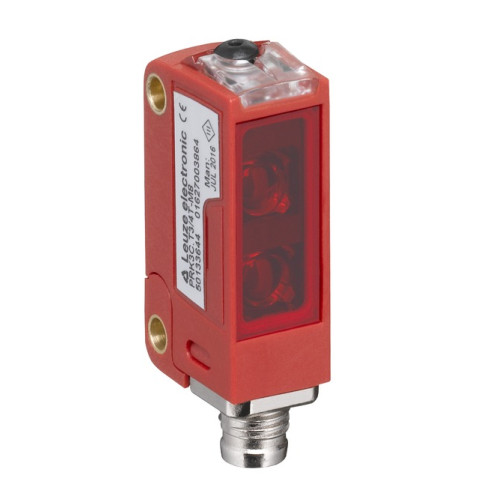

Application: Detection of small parts; Special version: Small light spot (S), 2 independent switching outputs; Light source: LED,

Manufacturer's No: HT3C.BS3/L6-M8     Manufacturer: Leuze
Application: Detection of small parts; Special version: Small light spot (S), 2 independent switching outputs; Light source: LED, Red; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 2 Pi

Availability On Request

£195.00
  • Application: Detection of small parts
  • Special version with small light spot (S) and 2 independent switching outputs
  • Light source: Red LED
  • Supply voltage: 12-30 V DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, Push-pull, IO-Link, PNP/NPN light switching
  • Switching output 2: Transistor, Push-pull, PNP/NPN light switching
  • Switching frequency: 750 Hz
  • Interface: IO-Link
  • Connection: M8 Metal Connector, 4-pin

Read more

  • Housing: Cubic design made of plastic
  • Dimensions: 11.4 mm x 34.2 mm x 18.3 mm
  • Operational controls: Teach button
  • Ambient temperature during operation: -40 to 60 °C
  • Degree of protection: IP 67, IP 69K

Accessories



Product

Manufacturer Material ID -
HT3C.BS3/L6-M8
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Adjustment range -
30 Millimetre
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
34.2 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
18.3 Millimetre
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Max. switching distance -
80 Millimetre
Maximum output current -
100 Milliampere
Min. reflector distance -
10 Millimetre
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
12 Volt
Rated switching distance -
80 Millimetre
Reaction time -
0.66 Millisecond
Sensing mode -
Light-/dark switching
Setting procedure -
Teach-In
Switching frequency -
750 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Transmission range of the safety field -
0.08 Metre
Triangulation -
Background fade-out
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Anticoincidence
Type of switching output -
Other
Voltage type -
DC
Wavelength of the sensor -
645 Nanometre
Width sensor -
11.4 Millimetre
Leuze

Availability On Request

£195.00
