50148207

Application: Detection of transparent films, Detection of highly transparent bottles, Detection of objects with openings; Special

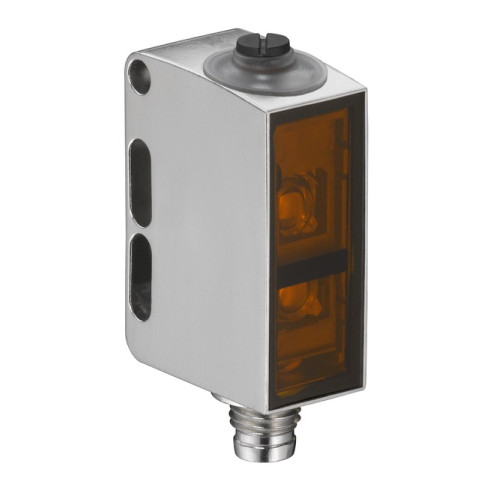

Manufacturer's No: HT55C.XL/LG-M8     Manufacturer: Leuze
Application: Detection of transparent films, Detection of highly transparent bottles, Detection of objects with openings; Special version: Wash-Down design, Extra long light spot (XL); Operating range

Availability Back Order

POA
  • Application: Detection of transparent films, highly transparent bottles, objects with openings
  • Special version: Wash-Down design, Extra long light spot (XL)
  • Operating range limit: 0.005 - 0.1 m
  • Light source: Red LED
  • Supply voltage: 10 - 30 V DC
  • Digital switching outputs: 2
  • Switching output 1: Transistor, Push-pull, IO-Link, PNP/NPN light switching
  • Switching output 2: Transistor, Push-pull, PNP/NPN dark switching
  • Switching frequency: 1,000 Hz
  • Interface: IO-Link

Read more

  • Connection: M8 Stainless steel 4-pin Connector
  • Design: Cubic housing
  • Dimensions: 14 mm x 35.4 mm x 25 mm
  • Housing material: Stainless steel
  • Operational controls: Multiturn potentiometer
  • Ambient temperature: -40 to 70 °C
  • Degree of protection: IP 68, IP 67, IP 69K

Accessories



Product

Manufacturer Material ID -
HT55C.XL/LG-M8
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
32121702

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP68
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
35.4 Millimetre
Housing material -
Metal
Length of sensor -
25 Millimetre
Material of cable sheath -
Other
Max. output current at protected output -
0 Milliampere
Maximum output current -
100 Milliampere
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Reaction time -
0.5 Millisecond
Sensing mode -
Light-/dark switching
Setting procedure -
Manual adjustment
Switching frequency -
1000 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Type of light -
Polarity free red light
Type of switch function -
Anticoincidence
Type of switching output -
PNP/NPN
Voltage type -
DC
Wavelength of the sensor -
645 Nanometre
Width sensor -
14 Millimetre
