50040498

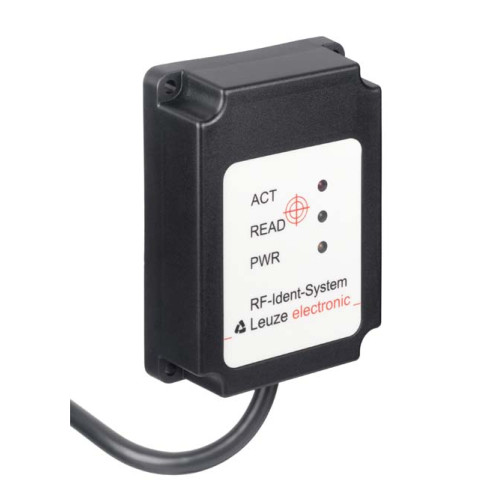

RFID read/write device Working frequency: 13.56 MHz; Functions: I/O, Configurable operating modes, Reading gate control, LED indic

Manufacturer's No: RFM32SL200     Manufacturer: Leuze
RFID read/write device Working frequency: 13.56 MHz; Functions: I/O, Configurable operating modes, Reading gate control, LED indicator; Reading/writing range, max.: 110 mm; Supply voltage: 12 ... 30

Availability Back Order

£956.00
  • Working frequency: 13.56 MHz
  • Reading/writing range: 110 mm
  • Supply voltage: 12-30 V DC
  • Interface: RS 232
  • Connection: Cable with socket connectors (10+6), 1,000 mm
  • Design: Cubic
  • Dimensions: 76 mm x 30 mm x 102 mm
  • Ambient temperature (operation): -25 to 65 °C
  • Degree of protection: IP 67

Accessories

Others



Product

Manufacturer Material ID -
RFM32SL200
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Leuze
Diameter -
- Millimetre
Radio protocol -
UN
Material housing -
UN
Max. transmission rate, reading -
- kiloBit/second
Max. transmission rate, writing -
- kiloBit/second
Degree of protection (IP) -
IP67
Degree of protection (IP rating) -
IP67
Depth -
102 Millimetre
Frequency -
13.56 Megahertz
Height -
30 Millimetre
Housing material -
Plastic
Max. transmission range -
110 Millimetre
Number of digital inputs -
1
Number of digital outputs -
1
Type of electric connection -
Plug-in connection
Type of voltage (input voltage) -
DC
Width -
76 Millimetre
Thumbnail of product picture -
Leuze

Availability Back Order

£956.00
