50112155

Connector Suitable for interface: Ethernet; Connection: Connector, M12, Axial, Male, D-coded, 4 -pin

Manufacturer's No: S-M12A-ET     Manufacturer: Leuze
Connector Suitable for interface: Ethernet; Connection: Connector, M12, Axial, Male, D-coded, 4 -pin

Availability Back Order

£47.00
  • Interface: Ethernet
  • Connection: Connector, M12, Axial, Male, D-coded, 4-pin


Product

Manufacturer Material ID -
S-M12A-ET
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121410

Technical Specification

-
Leuze
Ambient temperature -
-40 Degrees celsius
Coating housing -
None
Connectable conductor cross section fine-strand with cable end sleeve -
18 Square millimetre
Connectable conductor cross section solid-core -
18 Square millimetre
Contact type -
Pin
Degree of protection (IP), mounted -
IP67
For cable outer diameter -
6 Millimetre
Housing material -
Steel
Material of contact surface -
Other
Material thread ring -
Zinc die-cast
Number of control contacts -
0
Number of data contacts -
0
Over voltage category -
II
Pollution degree -
3
Rated current In -
4 Ampere
Rated voltage -
250 Volt
Type of electric connection -
Screw connection
Type of housing -
Straight
Type of locking -
Swivel

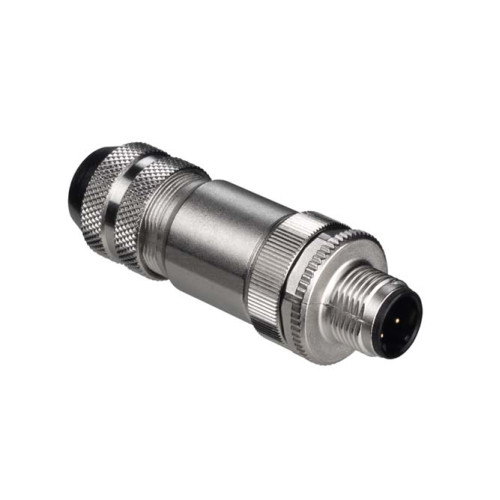

Thumbnail of product picture -
Leuze

Availability Back Order

£47.00
