6GF34408BC4

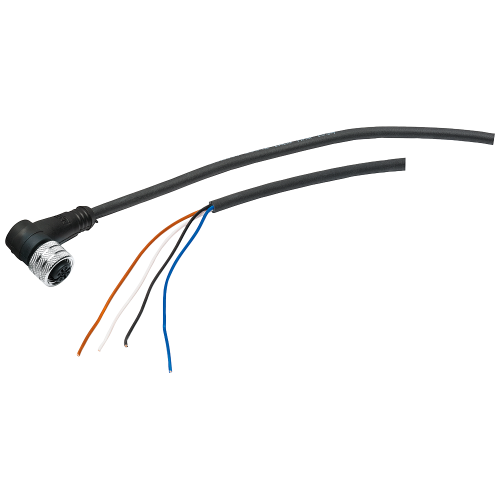

Cable for SIMATIC VS100 lamps, lamp-side with M12 angled socket

Manufacturer's No: 6GF3440-8BC4     Manufacturer: Siemens
Cable for SIMATIC VS100 lamps, lamp-side with M12 angled socket

Availability Back Order

POA
  • Cable for SIMATIC VS100 lamps
  • Lamp-side with M12 angled socket
  • Cable length: 10 meters
  • Cable type: PUR
  • Number of poles: 4
  • Wire size: 4 x 0.34 mm²
  • Suitable lamps: 6GF3400-0LT01-7BA1, 6GF3400-0LT01-8DA1, 6GF9004-7AA01, and others


Product

Manufacturer Material ID -
6GF3440-8BC4
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
PL
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151703

Technical Specification

-
Siemens
AWG-size -
-
Anti-kink sleeve -
UN
Type of connector connection 1 -
UN
Type of connector connection 2 -
UN
Cable construction -
UN
Colour anti-kink sleeve -
UN
Case connector connection 1 -
UN
Case connector connection 2 -
UN
Material connector of connector housing connection 1 -
UN
Material connector of connector housing connection 2 -
UN
NVP value -
- Percentage
Cable type -
U/UTP
Pin assignment -
1:1
Length -
10 Metre
Colour outer sheath -
Black
Degree of protection (IP) -
Other
Core insulation material -
Other
Flame retardant -
No
Sheath material -
Polyurethane (PUR)
Protective sheath -
No
Stranding -
Other
Reaction-to-fire according to EN 13501-6: Class -
None
Sheath material specification -
Other
Category -
Other
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
23.6 Millimetre
Min. permitted bending radius, moving application/free movement -
23.6 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
23.6 Millimetre
Number of cores -
4
Outer diameter approx. -
4.7 Millimetre
Overall screen type -
None
Permitted cable outer temperature after assembling without vibration -
-15 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Sheath colour -
Black
Stranding element -
No
