6GF35008BD10

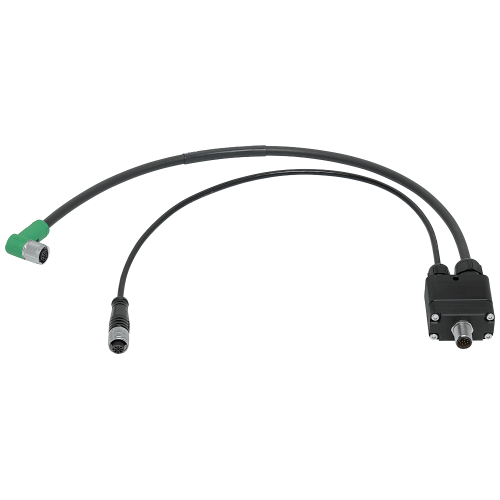

Adapter cable external lights MV500, for MV500 ring lights

Manufacturer's No: 6GF3500-8BD10     Manufacturer: Siemens
Adapter cable external lights MV500, for MV500 ring lights

Availability Back Order

£359.00
  • Adapter cable for external lights MV500 for MV500 ring lights
  • Adapter cable for external lamps MV500 for MV500 ring lamps
  • Allows connection of 6GF3400-0LT0-7BA1 and 6GF3400-0LT0-8BA1 to MV540 for power supply via 6GF3500-8BA21 or 6GF3500-8BA41
  • Connections: M12, 12-pole socket; M12, 12-pole plug; M12, 4-pole socket
  • Effective length: 25 cm
  • SIMATIC MVCablesPlug-in cable for external lamps on MV500
  • M12 / M12 / M12Y plug-in cable for later installation of an external ring light on stationary optical readers


Product

Manufacturer Material ID -
6GF3500-8BD10
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26121629

Technical Specification

AWG-size -
-
Anti-kink sleeve -
UN
Cable construction -
UN
Colour anti-kink sleeve -
UN
Case connector connection 1 -
UN
Case connector connection 2 -
UN
Material connector of connector housing connection 1 -
UN
Material connector of connector housing connection 2 -
UN
NVP value -
- Percentage
Cable type -
Other
Pin assignment -
Other
Length -
0.25 Metre
Colour outer sheath -
Black
Type of connector connection 1 -
M12
Type of connector connection 2 -
M12
Degree of protection (IP) -
Other
Core insulation material -
Other
Flame retardant -
No
Sheath material -
Polyurethane (PUR)
Protective sheath -
No
Stranding -
Other
Reaction-to-fire according to EN 13501-6: Class -
None
Sheath material specification -
Other
Category -
Other
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
23.6 Millimetre
Min. permitted bending radius, moving application/free movement -
23.6 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
23.6 Millimetre
Number of cores -
12
Outer diameter approx. -
4.7 Millimetre
Overall screen type -
None
Permitted cable outer temperature after assembling without vibration -
-15 Degrees celsius
Permitted cable outer temperature during assembling/handling -
80 Degrees celsius
Sheath colour -
Black
Stranding element -
No

Availability Back Order

£359.00
