6GF35408AC41

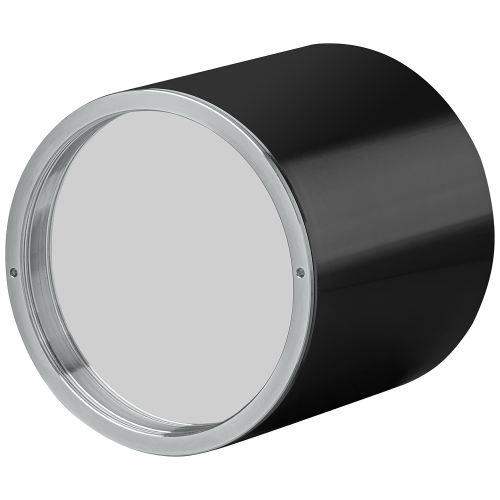

MV500 protective barrel glass, IR, short, for MV500 devices

Manufacturer's No: 6GF3540-8AC41     Manufacturer: Siemens
MV500 protective barrel glass, IR, short, for MV500 devices

Availability Back Order

POA
  • Protective barrel glass for MV500 devices
  • IR degree of protection IP67
  • Face plate: IR/glass, enclosure: metal
  • Lens length: 48.5 mm without ring light, 23.9 mm with ring light
  • Lens width: 60.4 mm without ring light, 41.6 mm with ring light
  • Suitable for lenses MLFB: 6GF9001-1BL01, -1BF01, -1BG01, -1BH01, -1BJ01, 6GF3540-8EA03-0LL0
  • Suitable luminaires MLFB: 6GF3540-8DA33, 8DA41, 8D42
  • Outer dimensions: 65 x 65 x 65 mm
  • Scope of delivery: protective barrel with mounted O-ring and pane


Product

Manufacturer Material ID -
6GF3540-8AC41
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
90069900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43232608

Availability Back Order

POA
