6GT26000AG00

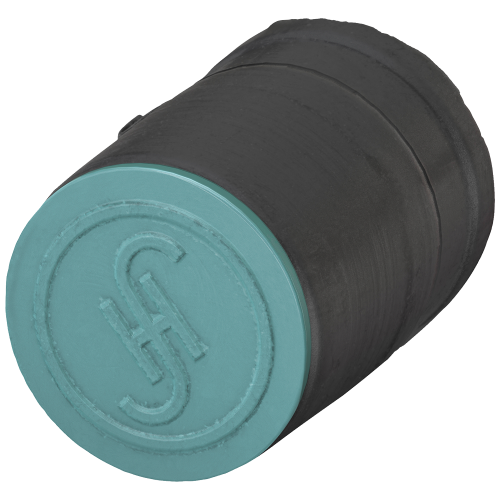

Transponder MDS D117 On-Metal adhesive, RF200/RF300 ISO, ISO 15693, 112 byte

Manufacturer's No: 6GT2600-0AG00     Manufacturer: Siemens
Transponder MDS D117 On-Metal adhesive, RF200/RF300 ISO, ISO 15693, 112 byte

View 3D

Availability Back Order

£23.08
  • Transponder Model: MDS D117
  • Compatibility: RF200/RF300 ISO On-Metal Transponder
  • Adhesive: ISO 15693
  • Chip Type: NXP ICODE SLI
  • User Memory: 112 bytes
  • Dimensions: 4 mm diameter x 5 mm height
  • Minimum Order Quantity: 10 units


Product

Manufacturer Material ID -
6GT2600-0AG00
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85235200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99I
Minimum Order Quantity -
10
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Width -
- Millimetre
Depth -
- Millimetre
Material housing -
Other
Degree of protection (IP) -
Other
Housing material -
Other
Degree of protection (IP rating) -
IP68/IPX9K
Diameter -
4 Millimetre
Frequency -
13.56 Megahertz
Height -
5.2 Millimetre
Max. transmission range -
4 Millimetre
Radio protocol -
ISO 15693
Type of memory -
EEPROM
Weight -
1 Gram

Availability Back Order

£23.08
