6GT26005AK00

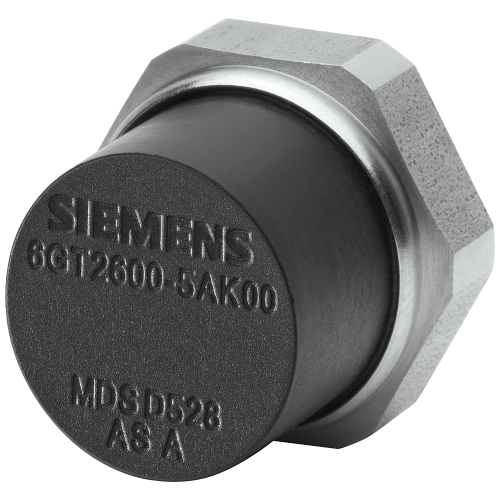

MDS D528 - Screwing transponder, 8192 byte FRAM

Manufacturer's No: 6GT2600-5AK00     Manufacturer: Siemens
MDS D528 - Screwing transponder, 8192 byte FRAM

View 3D

Availability Back Order

£51.10
  • Transponder Model: MDS D528
  • Compatible with RF200/RF300 Gen2
  • Screw Transponder Size: M8 long
  • ISO Standard: 15693
  • Chip Type: FUJITSU MB89R112
  • User Memory: 8192 bytes FRAM

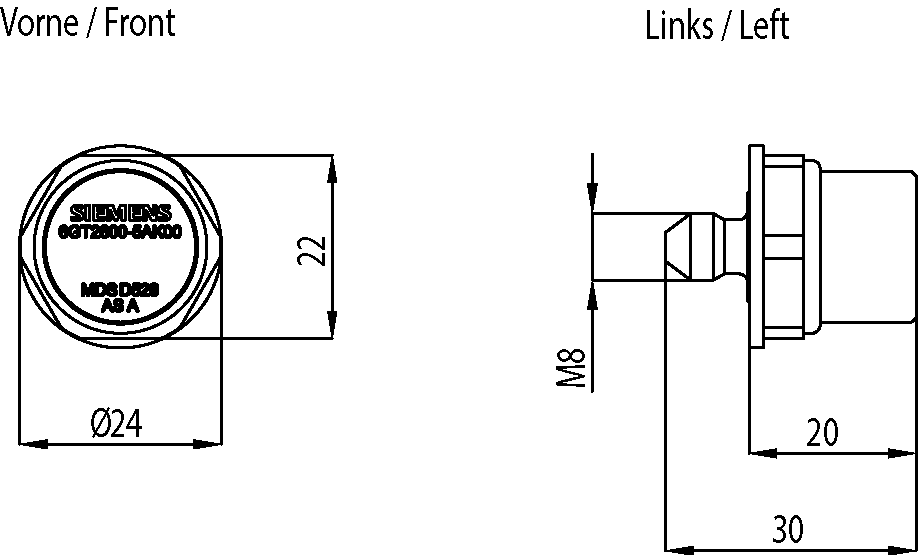

  • Dimensions: 24 mm diameter, 20 mm height
  • Operating Software: SW22
  • Minimum Order Quantity: 5 units


Product

Manufacturer Material ID -
6GT2600-5AK00
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85235200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99I
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32101617

Technical Specification

-
Siemens
Width -
- Millimetre
Depth -
- Millimetre
Material housing -
Plastic
Degree of protection (IP) -
Other
Diameter -
18 Millimetre
Frequency -
13.56 Megahertz
Height -
20 Millimetre
Max. transmission range -
80 Millimetre
Radio protocol -
ISO 15693
Type of memory -
FRAM
Weight -
35 Gram

Availability Back Order

£51.10
Sign in or Register for customer prices.

Additional Information

Did you know, we are an entrusted Siemens approved partner?
