6GT28005AC00

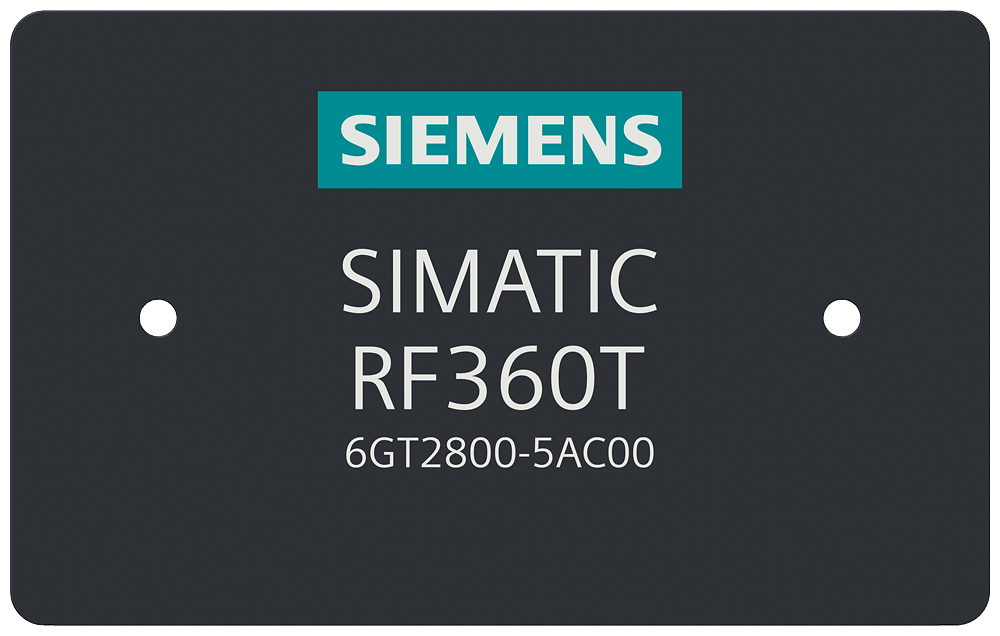

Transponder RF360T Epoxy Card, RF300, 32 KB FRAM, IP67

Manufacturer's No: 6GT2800-5AC00     Manufacturer: Siemens
Transponder RF360T Epoxy Card, RF300, 32 KB FRAM, IP67

View 3D

Availability Back Order

£78.77
  • Transponder type: SIMATIC RF300
  • Model: RF360T EPOXY card
  • Memory: 32 KB FRAM
  • Protection rating: IP67
  • Operating temperature: -25 to +70°C

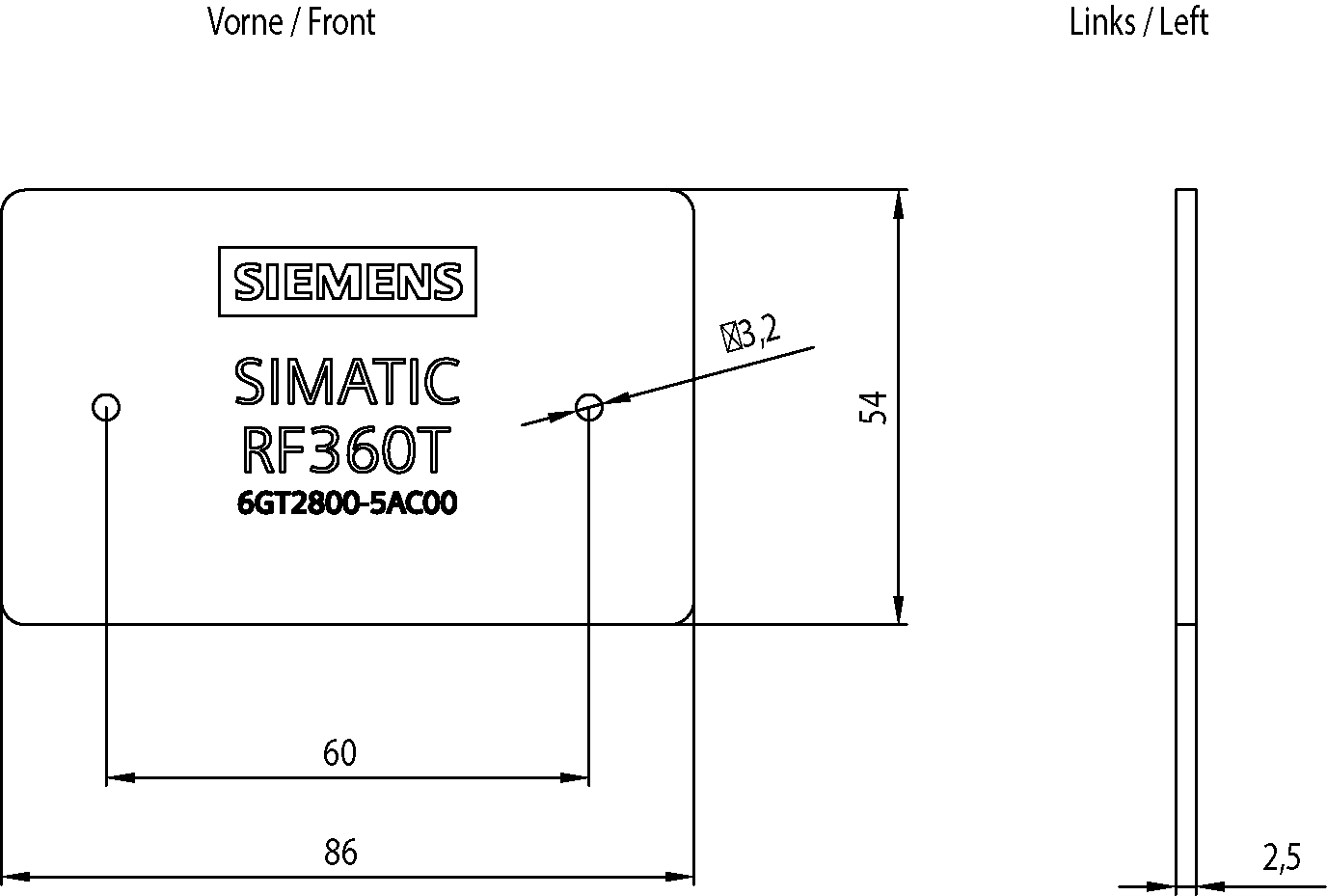

  • Dimensions: 85 x 54 x 2.5 mm
  • Minimum order quantity: 10 units
Price £2.96
Back Order


Product

Manufacturer Material ID -
6GT2800-5AC00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85235200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99I
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Diameter -
- Millimetre
Material housing -
Other
Degree of protection (IP) -
IP67
Radio protocol -
Other
Housing material -
Other
Type of memory -
FRAM/EEPROM
Degree of protection (IP rating) -
IP67
Depth -
86 Millimetre
Frequency -
13.56 Megahertz
Height -
2.5 Millimetre
Max. transmission range -
150 Millimetre
Weight -
25 Gram
Width -
55 Millimetre

Availability Back Order

£78.77
