6GT28005BA00

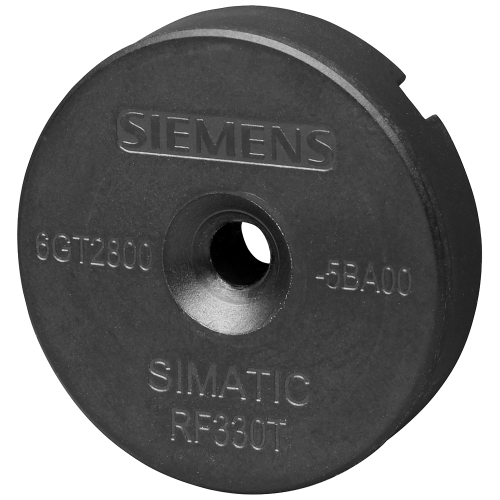

Transponder RF330T button, RF300, 32K byte FRAM, IP68

Manufacturer's No: 6GT2800-5BA00     Manufacturer: Siemens
Transponder RF330T button, RF300, 32K byte FRAM, IP68

View 3D

Availability Back Order

£94.87
  • SIMATIC RF300 Transponder RF330T button
  • 32 KB FRAM memory
  • IP68 rated for dust and water resistance
  • Operating temperature range: -25 to +85°C

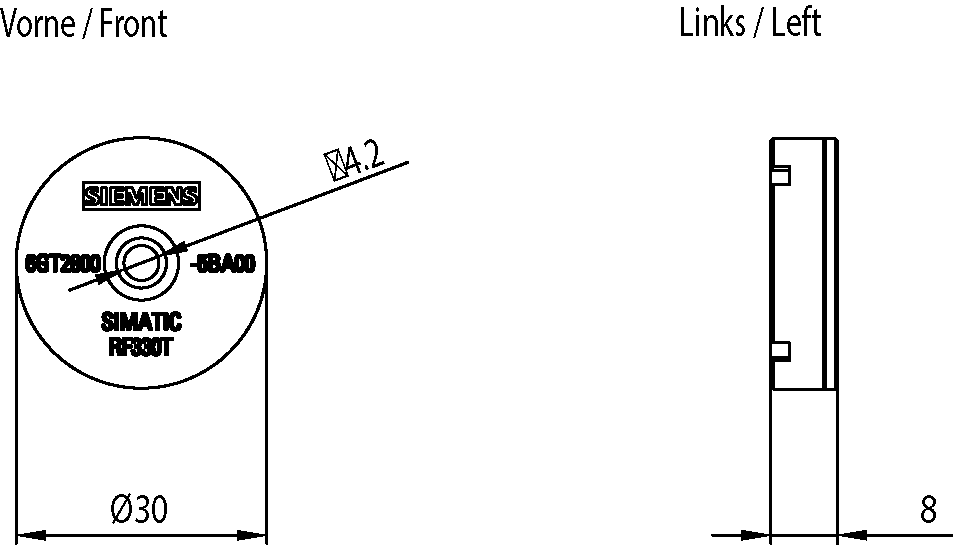

  • Dimensions: 30 x 8 mm (Diameter x Thickness)
  • Suitable for use in and on metal surfaces
  • Minimum order quantity: 10 units


Product

Manufacturer Material ID -
6GT2800-5BA00
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85235200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99I
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Width -
- Millimetre
Depth -
- Millimetre
Material housing -
Other
Degree of protection (IP) -
Other
Radio protocol -
Other
Housing material -
Other
Type of memory -
FRAM/EEPROM
Degree of protection (IP rating) -
IP68/IPX9K
Diameter -
30 Millimetre
Frequency -
13.56 Megahertz
Height -
8 Millimetre
Max. transmission range -
52 Millimetre
Weight -
15 Gram

Availability Back Order

£94.87
