6GT28013AB200AX0

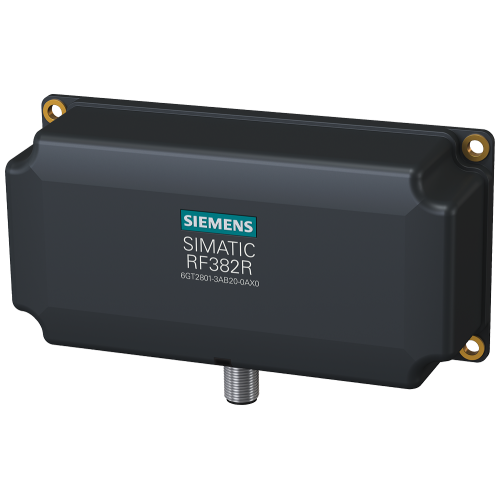

SIMATIC RF300 reader RF382R (ISO scan mode) RS422/232, IP67, -25 to +70 °C

Manufacturer's No: 6GT2801-3AB20-0AX0     Manufacturer: Siemens
SIMATIC RF300 reader RF382R (ISO scan mode) RS422/232, IP67, -25 to +70 °C

View 3D

Availability Back Order

£1,710.20
  • SIMATIC RF300 reader model RF382R
  • ISO scan mode
  • RS 422/232 interface
  • IP67 rated for dust and water resistance
  • Operating temperature range: -25 to +70°C
  • Compact size: 160 x 80 x 41 mm
  • Integrated special antenna

Accessories

Instructional video
Product video


Product

Manufacturer Material ID -
6GT2801-3AB20-0AX0
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Diameter -
- Millimetre
Number of digital inputs -
-
Number of digital outputs -
-
Material housing -
Plastic
Degree of protection (IP) -
IP67
Radio protocol -
ISO 15693
Type of electric connection -
Screw connection
Max. transmission rate, reading -
106000 kiloBit/second
Max. transmission rate, writing -
106000 kiloBit/second
Degree of protection (IP rating) -
IP67
Depth -
160 Millimetre
Frequency -
13.56 Megahertz
Height -
41 Millimetre
Housing material -
Plastic
Max. transmission range -
75 Millimetre
Type of voltage (input voltage) -
DC
Width -
80 Millimetre

Availability Back Order

£1,710.20
