6GT28013BA10

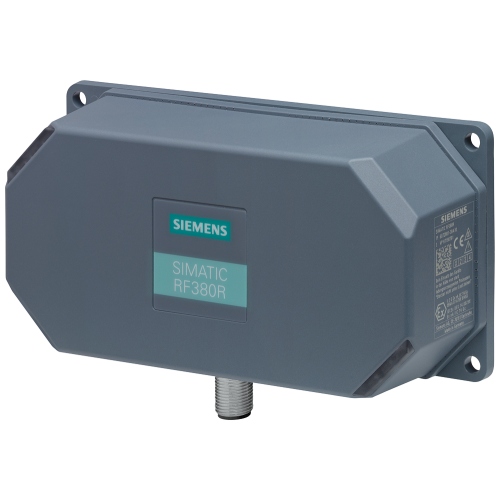

SIMATIC RF300 reader RF380R (GEN2) RS422/232 (3964R) IP67, -10 to +60 °C

Manufacturer's No: 6GT2801-3BA10     Manufacturer: Siemens
SIMATIC RF300 reader RF380R (GEN2) RS422/232 (3964R) IP67, -10 to +60 °C

View 3D

Availability Back Order

£887.29
  • SIMATIC RF300 Reader RF380R
  • GEN2 RFID technology
  • RS422/232 interface (3964R)
  • IP67 rated for dust and water resistance
  • Operating temperature: -25 to +70°C
  • Compact size: 160 x 80 x 41 mm
  • Integrated antenna for improved performance

Selectable mandatory product



Product

Manufacturer Material ID -
6GT2801-3BA10
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Diameter -
- Millimetre
Number of digital inputs -
-
Number of digital outputs -
-
Material housing -
Plastic
Degree of protection (IP) -
IP67
Radio protocol -
Other
Type of electric connection -
Screw connection
Max. transmission rate, reading -
106000 kiloBit/second
Max. transmission rate, writing -
106000 kiloBit/second
Degree of protection (IP rating) -
IP67
Depth -
160 Millimetre
Frequency -
13.56 Megahertz
Height -
41 Millimetre
Housing material -
Plastic
Max. transmission range -
200 Millimetre
Type of voltage (input voltage) -
DC
Width -
80 Millimetre

Availability Back Order

£887.29
