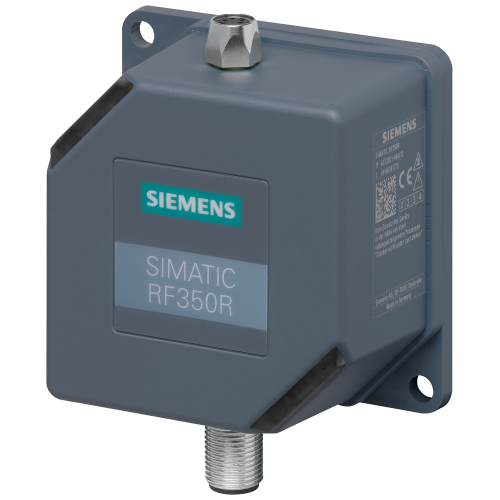

6GT28014BA10

SIMATIC RF300 reader RF350R (GEN2), RS422 (3964R), IP65, -25 to +70 °C

Manufacturer's No: 6GT2801-4BA10     Manufacturer: Siemens
SIMATIC RF300 reader RF350R (GEN2), RS422 (3964R), IP65, -25 to +70 °C

View 3D

Availability Back Order

£569.40
  • SIMATIC RF300 Reader RF350R (GEN2)
  • RS422 interface (3964R)
  • IP65 rated, suitable for outdoor use
  • Operating temperature: -25 to +70°C

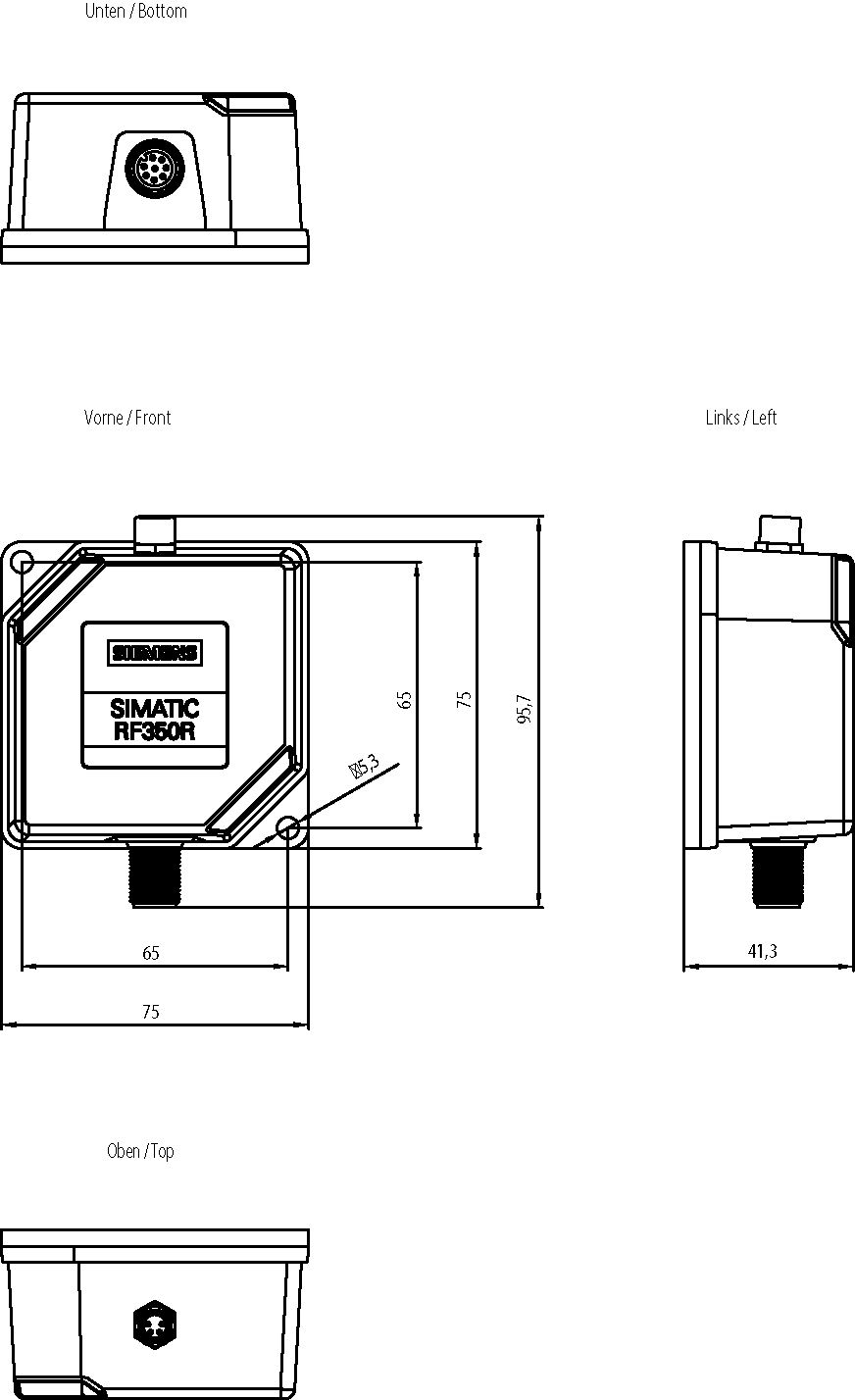

  • Compact size: 75 x 75 x 41 mm
  • Compatible with various antennas: ANT 1, 3, 3NO, 8, 12, 18, 30

Selectable mandatory product

Accessories

Instructional video
Product video


Product

Manufacturer Material ID -
6GT2801-4BA10
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99I
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Diameter -
- Millimetre
Number of digital inputs -
-
Number of digital outputs -
-
Material housing -
Plastic
Degree of protection (IP) -
IP65
Radio protocol -
Other
Type of electric connection -
Other
Max. transmission rate, reading -
106000 kiloBit/second
Max. transmission rate, writing -
106000 kiloBit/second
Connection for external antenna -
Degree of protection (IP rating) -
IP65
Depth -
75 Millimetre
Frequency -
13.56 Megahertz
Height -
41 Millimetre
Housing material -
Plastic
Max. transmission range -
140 Millimetre
Type of voltage (input voltage) -
DC
Width -
75 Millimetre

Availability Back Order

£569.40
