6GT28210AC12

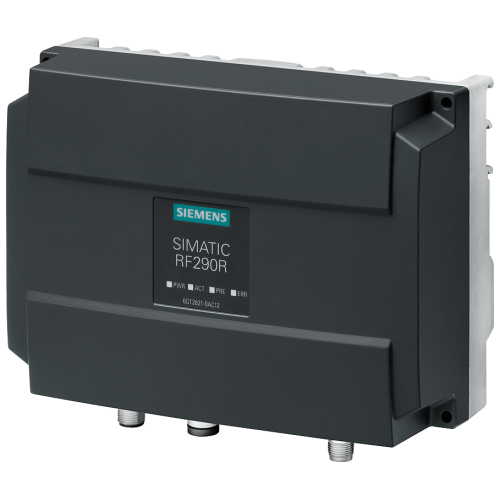

SIMATIC RF200 reader RF290R, RS232/RS422 switchable, without antenna

Manufacturer's No: 6GT2821-0AC12     Manufacturer: Siemens
SIMATIC RF200 reader RF290R, RS232/RS422 switchable, without antenna

Availability Available to order

£2,719.22
  • SIMATIC RF200 reader model RF290R
  • Serial RS 232/RS 422 interface
  • Compatible with antennas: ANT D2, ANT D5, ANT D6, ANT D10

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
6GT2821-0AC12
Net Weight -
3.00kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Diameter -
- Millimetre
Material housing -
Aluminium
Degree of protection (IP) -
IP65
Radio protocol -
ISO 18000-3
Type of electric connection -
Screw connection
Max. transmission rate, reading -
26500 kiloBit/second
Max. transmission rate, writing -
26500 kiloBit/second
Connection for external antenna -
Degree of protection (IP rating) -
IP65
Depth -
140 Millimetre
Frequency -
13.56 Megahertz
Height -
80 Millimetre
Housing material -
Aluminium
Max. transmission range -
650 Millimetre
Number of digital inputs -
1
Number of digital outputs -
1
Type of voltage (input voltage) -
DC
Width -
200 Millimetre

Availability Available to order

£2,719.22
