6GT28216AC40

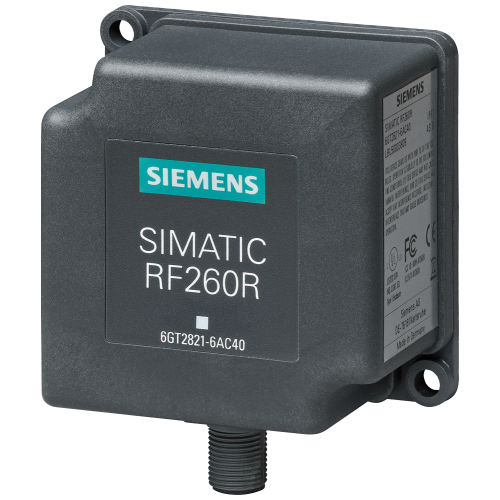

SIMATIC RF200 reader RF260R, RS232 (ASCII/ scan mode), IP67, -25 to +70 °C

Manufacturer's No: 6GT2821-6AC40     Manufacturer: Siemens
SIMATIC RF200 reader RF260R, RS232 (ASCII/ scan mode), IP67, -25 to +70 °C

View 3D

Availability Back Order

£470.81
  • SIMATIC RF200 Reader RF260R
  • RS-232 interface (ASCII/scan mode)
  • IP67 rated for dust and water resistance
  • Operating temperature range: -25 to +70°C
  • Compact size: 75 x 75 x 40 mm
  • Integrated antenna for improved performance

Accessories

Instructional video
Product video


Product

Manufacturer Material ID -
6GT2821-6AC40
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99I
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Diameter -
- Millimetre
Number of digital inputs -
-
Number of digital outputs -
-
Material housing -
Plastic
Degree of protection (IP) -
IP67
Radio protocol -
ISO 18000-3
Type of electric connection -
Screw connection
Max. transmission rate, reading -
26500 kiloBit/second
Max. transmission rate, writing -
26500 kiloBit/second
Degree of protection (IP rating) -
IP67
Depth -
75 Millimetre
Frequency -
13.56 Megahertz
Height -
41 Millimetre
Housing material -
Plastic
Max. transmission range -
135 Millimetre
Type of voltage (input voltage) -
DC
Width -
75 Millimetre

Availability Back Order

£470.81
