6GT28116CC100AA0

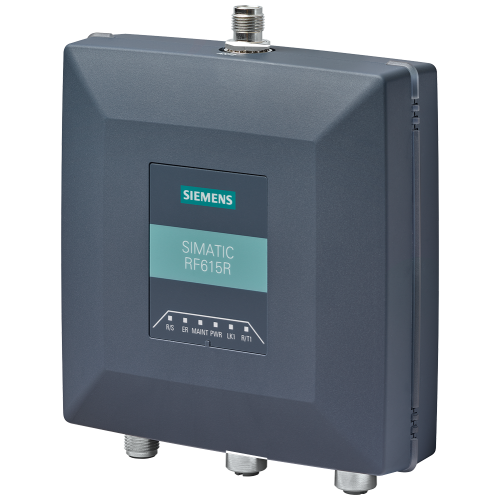

SIMATIC RF600 reader RF615R ETSI, Ethernet, PROFINET M12, IP67, -25 to +55 °C

Manufacturer's No: 6GT2811-6CC10-0AA0     Manufacturer: Siemens
SIMATIC RF600 reader RF615R ETSI, Ethernet, PROFINET M12, IP67, -25 to +55 °C

View 3D

Availability Back Order

£1,608.59
  • SIMATIC RF600 Reader RF615R ETSI
  • Interfaces: 1 Ethernet / PROFINET M12
  • 1 integrated antenna + 1 external antenna port
  • 1 digital input, 1 digital output
  • Operating temperature: -25 to +55°C
  • Power supply: 24 V DC
  • IP67 protection rating

Accessories



Product

Manufacturer Material ID -
6GT2811-6CC10-0AA0
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5A002ENCA3
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Frequency -
- Megahertz
Diameter -
- Millimetre
Material housing -
Plastic
Degree of protection (IP) -
IP67
Radio protocol -
EPCglobal Class-1 Gen 2
Type of electric connection -
Other
Max. transmission rate, reading -
400000 kiloBit/second
Max. transmission rate, writing -
400000 kiloBit/second
Connection for external antenna -
Degree of protection (IP rating) -
IP67
Depth -
45 Millimetre
Height -
133 Millimetre
Housing material -
Plastic
Max. transmission range -
4000 Millimetre
Number of digital inputs -
1
Number of digital outputs -
1
Type of voltage (input voltage) -
DC
Width -
133 Millimetre

Availability Back Order

£1,608.59
