6GT27911AH30

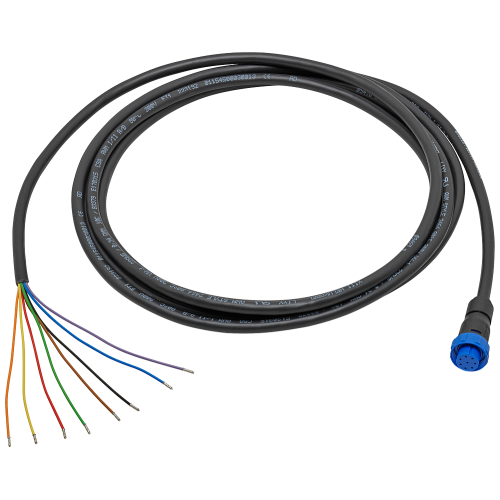

SIMATIC RTLS connecting cable for RTLS4060T transponder, 8-wire, open ends 3 m

Manufacturer's No: 6GT2791-1AH30     Manufacturer: Siemens
SIMATIC RTLS connecting cable for RTLS4060T transponder, 8-wire, open ends 3 m

Availability Available to order

POA
  • SIMATIC RTLS connecting cable for RTLS4060T transponder
    • 8-wire
    • Length: 3 meters
    • Open ends
  • SIMATIC RTLS accessory connecting cable for transponders RTLS4060T
    • 8-core
    • Suitable for 24 V, CAN bus, IO
    • Length: 3 meters
    • Open ends
  • SIMATIC RTLS Cables Plug-in cable for transponder
    • Bulgin 8 connector
    • Ferrules included


Product

Manufacturer Material ID -
6GT2791-1AH30
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85444210
Country of Origin -
DE
UNSPSC -
43211710

Technical Specification

AWG-size -
-
Anti-kink sleeve -
UN
Type of connector connection 1 -
UN
Type of connector connection 2 -
UN
Cable construction -
UN
Colour anti-kink sleeve -
UN
Case connector connection 1 -
UN
Case connector connection 2 -
UN
Material connector of connector housing connection 1 -
UN
Material connector of connector housing connection 2 -
UN
NVP value -
- Percentage
Cable type -
U/UTP
Pin assignment -
1:1
Length -
3 Metre
Colour outer sheath -
Black
Degree of protection (IP) -
Other
Core insulation material -
Polyvinyl chloride (PVC)
Flame retardant -
No
Circuit integrity -
No
Stranding element -
Other
Individual screen type -
Other
Sheath material -
Polyvinyl chloride (PVC)
Conductor category -
Class 5 = flexible
Protective sheath -
No
Stranding -
Other
Reaction-to-fire according to EN 13501-6: Class -
None
Sheath material specification -
Other
Category -
Other
Core identification -
Colour
Min. permitted bending radius, moving application with forced guidance -
98 Millimetre
Min. permitted bending radius, moving application/free movement -
98 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
98 Millimetre
Number of cores -
10
Outer diameter approx. -
6.5 Millimetre
Overall screen type -
None
Permitted cable outer temperature after assembling without vibration -
-20 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-20 Degrees celsius
Sheath colour -
Black
