50148124

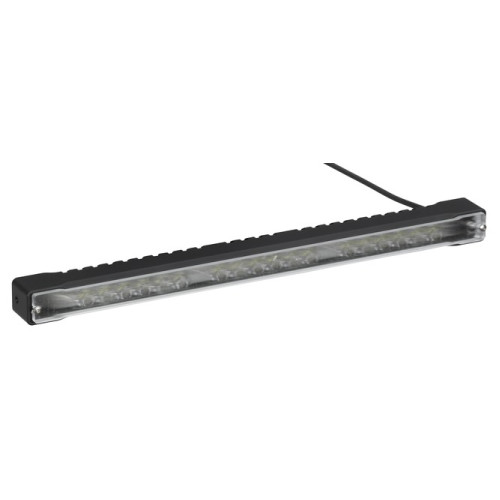

Type: LED bar lighting with switchable constant light; Suitable for: DCR 1048i, IVS 1048i; Special version: Protective cover, lent

Manufacturer's No: IL BA 012/240 RD 301 L D     Manufacturer: Leuze
Type: LED bar lighting with switchable constant light; Suitable for: DCR 1048i, IVS 1048i; Special version: Protective cover, lenticular; Functions: Continuous operation; Light source: LED, Red; Light

Availability Back Order

POA
  • Type: LED bar lighting with switchable constant light
  • Suitable for: DCR 1048i, IVS 1048i
  • Special version: Protective cover, lenticular
  • Functions: Continuous operation
  • Light source: Red LED
  • Light wavelength: 446 nm
  • Transmitted-signal shape: Continuous
  • Illumination intensity: 74.5 kLx at 100 mm, 35.0 kLx at 200 mm, 13.50 kLx at 500 mm
  • Supply voltage: 24 V DC
  • Power consumption: 9.5 W max. at 24 V DC

Read more

  • Connection: Cable with M12, 3-pin connector
  • Design: Cubic
  • Dimensions: 23.1 mm x 18 mm x 254 mm
  • Material: Metal
  • Operating temperature: 0 to 40 °C
  • Degree of protection: IP 40

Accessories



Product

Manufacturer Material ID -
IL BA 012/240 RD 301 L D
Net Weight -

Additional Product Information

Commodity Code -
85395100
Country of Origin -
DE
UNSPSC -
32121702
