Isolating switching amplifier, 2-channel

Manufacturer's No: IMX12-DI01-2S-2R-PR/24VDC/CC     Manufacturer: Turck Banner
Isolating switching amplifier, 2-channel

Availability On Request

£184.46
  • Isolating switching amplifier
  • 2-channel with switchable operation modes
  • Operating voltage: 10 to 30 VDC
  • 2 relay outputs with complementary contacts
  • Output mode adjustable to NO/NC mode
  • Input circuits monitored for wire-break/short-circuit
  • Complete galvanic isolation and input reverse-polarity protection
  • Removable spring type terminals with power bridge connector included
  • ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS, DNV, GL certifications
  • Suitable for use in Zone 2 with SIL 2 compliance


Product

Manufacturer Material ID -
IMX12-DI01-2S-2R-PR/24VDC/CC
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Degree of protection (IP rating) -
IP20

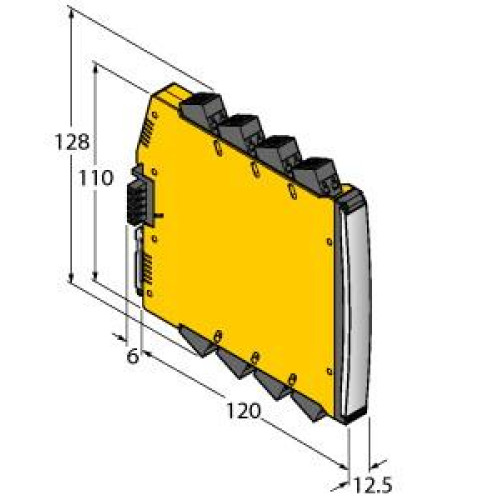

Depth -
120 Millimetre
Height -
128 Millimetre
Mounting method -
Snap mounting support rail
Number of inputs, according to NAMUR -
2
Operating temperature -
-25 Degrees celsius
Power consumption -
1.2 Watt
Rated supply voltage at DC -
10 Volt
SIL according to IEC 61508 -
2
Switching current -
2 Ampere
Switching frequency -
15 Hertz
Switching voltage -
250 Volt
Type of electric connection -
Spring clamp connection
Width -
12.5 Millimetre
