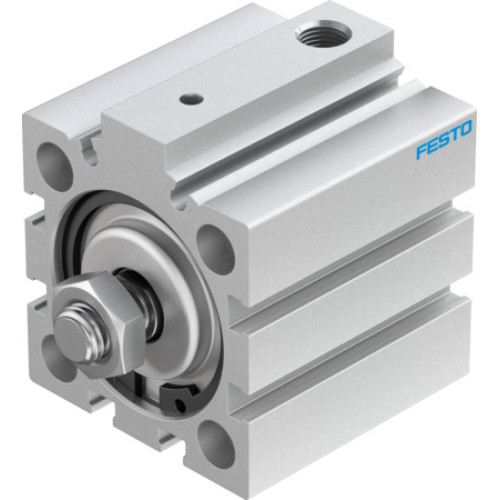

AEVC-40-25-A-P Short-stroke cylinder

Manufacturer's No: AEVC-40-25-A-P     Manufacturer: Festo
AEVC-40-25-A-P Short-stroke cylinder

Availability Available to order

£121.1125
  • Short-stroke cylinder AEVC-40-25-A-P
  • Stroke: 25 mm
  • Piston diameter: 40 mm
  • Spring return force (retracted): 28 N
  • Based on standards: ISO 6431, Hole pattern, VDMA 24562
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar, 14.5 psi, 145 psi
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Ambient temperature: -20°C to 80°C
  • Theoretical force at 0.6 MPa (6 bar, 87 psi) advance stroke: 707 N
  • Moving mass: 83 g
  • Product weight: 337 g
  • Type of mounting: With through-hole, with accessories, either
  • Pneumatic connection: G1/8
  • Material: RoHS-compliant
  • Material cover: Wrought aluminium alloy, anodised
  • Material seals: NBR, TPE-U(PU)
  • Material housing: Wrought aluminium alloy, anodised
  • Material piston rod: High-alloy steel


Product

Manufacturer Material ID -
AEVC-40-25-A-P
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
9031 9000
Country of Origin -
DE
UNSPSC -
41111926
Festo

Availability Available to order

£121.1125
