3RK14051SE150AA2

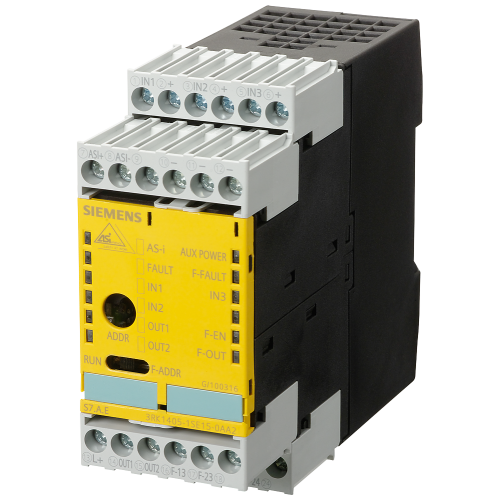

ASIsafe SlimLine module S45F digital safety IP20 1F-RQ/3DI/2DQ 1 x safe output relay 2-channel 3 x standard input 2 x standard out

Manufacturer's No: 3RK1405-1SE15-0AA2     Manufacturer: Siemens
ASIsafe SlimLine module S45F digital safety IP20 1F-RQ/3DI/2DQ 1 x safe output relay 2-channel 3 x standard input 2 x standard output 24 V DC screw...

Availability On Request

£521.67
  • ASIsafe SlimLine module S45F
  • Digital safety module with IP20 protection
  • 1 safe output relay with 2 channels
  • 3 standard inputs and 2 standard outputs
  • Operating voltage of 24 V DC
  • Width of 45 mm
  • Screw terminals
  • Note: Product is being phased out and now available only as a spare part


Product

Manufacturer Material ID -
3RK1405-1SE15-0AA2
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Time delay at signal exchange -
- Millisecond
Output current -
- Ampere
Type of digital output -
UN
Explosion safety category for dust -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Permitted voltage at input -
- Volt
Degree of protection (IP) -
IP20
Category according to EN 954-1 -
4
Number of interfaces PROFINET -
0
Performance level acc. EN ISO 13849-1 -
Level e
Degree of protection (IP rating) -
IP20

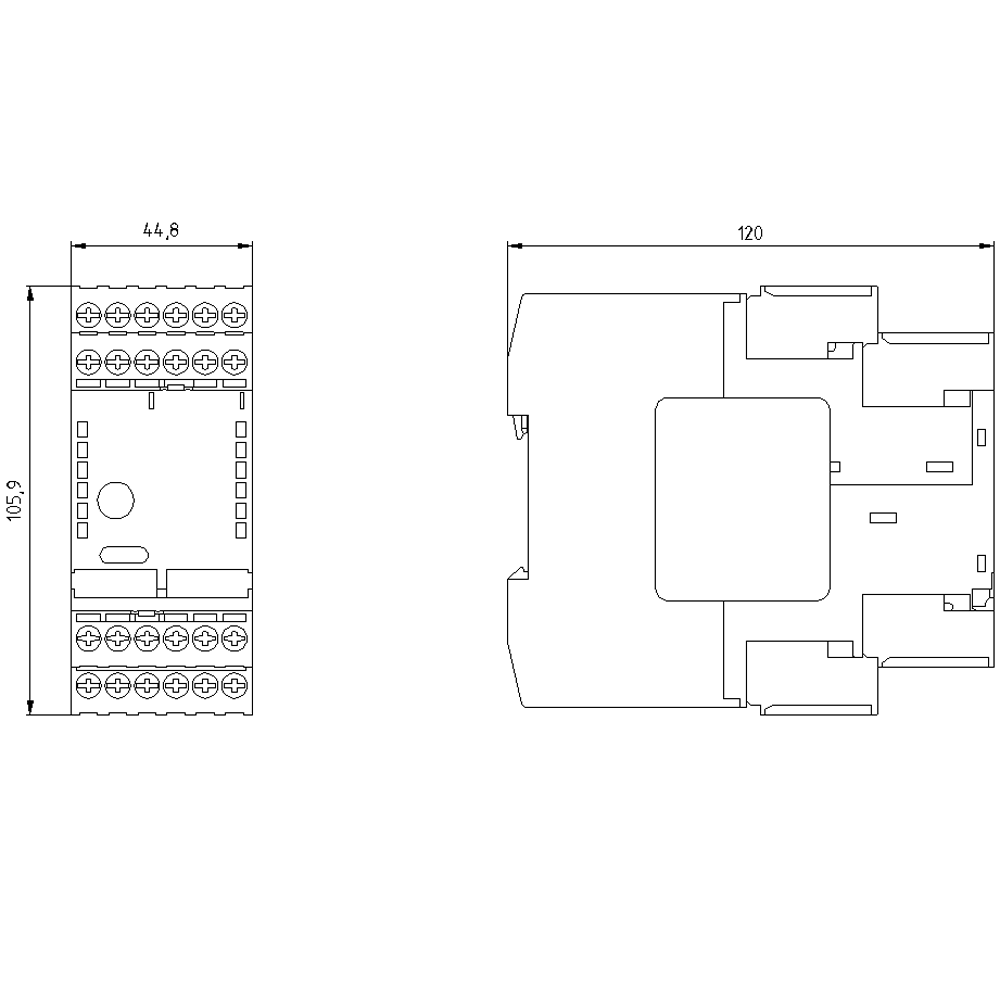

Depth -
120 Millimetre
Explosion safety category for gas -
None
Height -
105.9 Millimetre
Input current at signal 1 -
5 Milliampere
Number of digital inputs -
2
Number of digital outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Short-circuit protection, outputs available -
SIL according to IEC 61508 -
3
Supporting protocol for ASI -
Supporting protocol for AS-Interface Safety at Work -
System accessory -
Type of electric connection -
Screw connection
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
45 Millimetre

Availability On Request

£521.67
