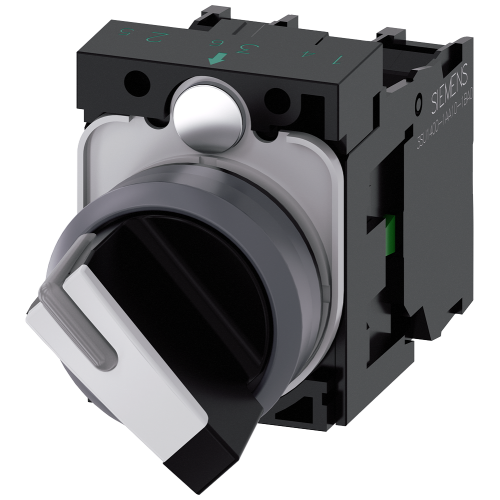

3SU11302BF601MA0

Selector switch, illuminable, 22 mm, round, plastic with metal front ring, white, selector switch, s

Manufacturer's No: 3SU1130-2BF60-1MA0     Manufacturer: Siemens
Selector switch, illuminable, 22 mm, round, plastic with metal front ring, white, selector switch, s

Availability On Request

POA

This product has been superseded by

3SU11002BF601MA0

Please check compatibility before purchasing.

  • Selector switch
    • 22 mm round plastic with metal front ring
    • White color
    • Illuminable
    • Short with 2 switch positions (O-I)
    • Latching with actuating angle of 90°
    • 1 Normally Open (NO) and 1 Normally Closed (NC) contact
    • Screw terminal
    • Suitable for industry and outdoor use
    • High degree of protection for reliable operation
    • Can withstand cleaning with high-pressure jet
    • Can be connected to controller via PROFINET, AS-Interface, or IO-Link
    • Easy installation with innovative snap-on concept
    • Available in various colors and configurations
    • Can be illuminated (lighting can be added later)
    • Includes holders and modules in delivery
  • SIRIUS ACT by Siemens
    • Pushbuttons and signaling devices
    • Global product approvals
    • Available in metal and high-grade plastic
    • Easy installation with one hand and no special tools
    • Suitable for industry and outdoor use
    • Can be connected to various controllers
    • Online Configurator for easy selection and ordering
    • Various versions available with different features
  • Performance-oriented control and signaling solution


Product

Manufacturer Material ID -
3SU1130-2BF60-1MA0
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Type of electric connection -
UN
Hole diameter -
22.3 Millimetre
Colour button -
White
Number of switch positions -
2
Suitable for illumination -
Colour front ring -
Other
Supply voltage -
5 Volt
Width opening -
32.3 Millimetre
Height opening -
28.8 Millimetre
Degree of protection (IP) -
IP67/IP69K
Material front ring -
Other
With front ring -
Type of control element -
Toggle
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of contacts as change-over contact -
0
Degree of protection (NEMA) -
13

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3SU11002BF601MA0

Please check compatibility before purchasing.
