3SU11302BL601LA0

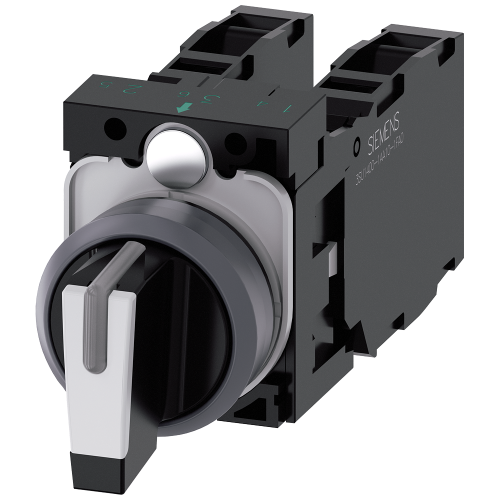

Selector switch, illuminable, 22 mm, round, plastic with metal front ring, white, selector switch, short, 3 switch positions I-O-I

Manufacturer's No: 3SU1130-2BL60-1LA0     Manufacturer: Siemens
Selector switch, illuminable, 22 mm, round, plastic with metal front ring, white, selector switch, short, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h, with holder, 1

Availability On Request

POA

This product has been superseded by

3SU11002BL601LA0

Please check compatibility before purchasing.

  • Selector switch - 22 mm round plastic with metal front ring - White color - Short with 3 switch positions: I-O-II - Latching mechanism with actuating angle of 2x45° - Operating times at 10:30h, 12h, and 13:30h - Illuminable with holder - 1 NO + 1 NC screw terminal

  • Siemens SIRIUS ACT Selector Switches - Unique portfolio for switching and controlling electrical loads - Global product approvals - Available in genuine metal and high-grade plastic designs - Easy snap-on installation without special tools - Suitable for industrial and outdoor use with high degree of protection - Resistant to dust, oils, and caustic solutions - Compatible with PROFINET, AS-Interface, and IO-Link for easy controller connection - Online Configurator for device selection and ordering - Various versions available: colors, switching positions, selector types, illumination options - Complete unit delivery includes holders and modules

  • SIRIUS ACT: Performance-driven control and signaling solution - Easy to mount, strong, and reliable operation - Simplifies wiring, reduces errors, and offers flexibility - Ideal for industrial applications with rugged design - Lighting can be retrofitted for illuminated versions



Product

Manufacturer Material ID -
3SU1130-2BL60-1LA0
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Type of electric connection -
UN
Hole diameter -
22.3 Millimetre
Colour button -
White
Number of switch positions -
3
Suitable for illumination -
Colour front ring -
Other
Supply voltage -
5 Volt
Width opening -
32.3 Millimetre
Height opening -
28.8 Millimetre
Degree of protection (IP) -
IP67/IP69K
Material front ring -
Other
With front ring -
Type of control element -
Toggle
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
Number of contacts as change-over contact -
0
Degree of protection (NEMA) -
13

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3SU11002BL601LA0

Please check compatibility before purchasing.
