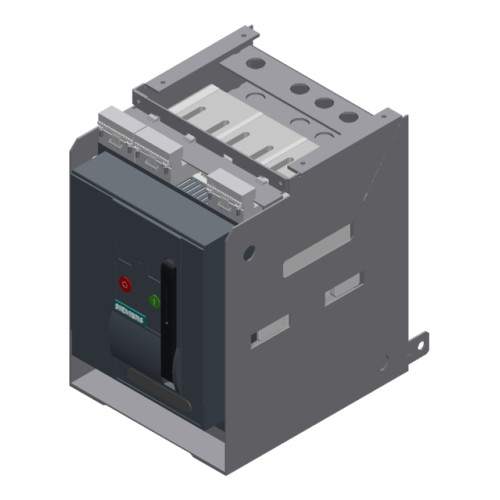

3WL11064AA351AA2

withdraw. non-aut. circuit-b. without guide frame 3-pole, size I, IEC In=630A to 690V, AC50/60Hz Icu

Manufacturer's No: 3WL1106-4AA35-1AA2     Manufacturer: Siemens
withdraw. non-aut. circuit-b. without guide frame 3-pole, size I, IEC In=630A to 690V, AC50/60Hz Icu

Availability On Request

£3,830.87
  • Circuit Breaker Type: Non-automatic
  • Configuration: 3-pole, Size I
  • Standards: IEC
  • Rated Current: 630A
  • Rated Voltage: 690V AC, 50/60Hz
  • Short-Circuit Breaking Capacity: 85kA at 500V
  • Connection: Rear, Horizontal
  • Operating Mechanism: Manual
  • Auxilary Releases: None
  • Contacts: 2 Normally Open (NO) + 2 Normally Closed (NC)


Product

Manufacturer Material ID -
3WL1106-4AA35-1AA2
Net Weight -
45.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Rated voltage -
690 Volt
Position of connection for main current circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Motor drive optional -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of poles -
3
Power loss -
195 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Push button

Availability On Request

£3,830.87
