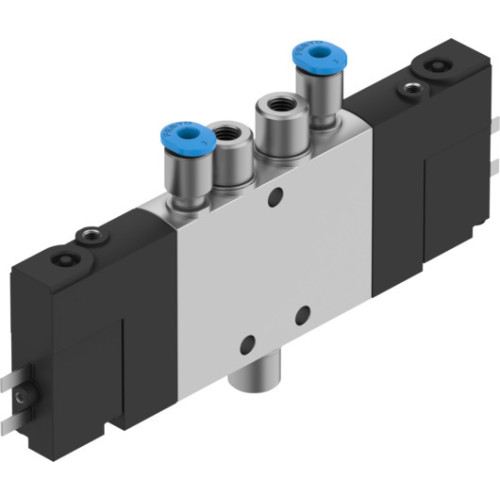

CPE10-M1BH-5/3GS-M5-B Solenoid valve

Manufacturer's No: CPE10-M1BH-5/3GS-M5-B     Manufacturer: Festo
CPE10-M1BH-5/3GS-M5-B Solenoid valve

Availability Available to order

£74.12
  • Solenoid valve CPE10-M1BH-5/3GS-M5-B
  • Valve function: 5/3 closed
  • Type of actuation: Electrical
  • Width: 10 mm
  • Standard nominal flow rate: 180 l/min
  • Operating pressure: -0.09 MPa to 1 MPa
  • Design: Piston gate valve
  • Type of reset: Mechanical spring
  • Approval: c UL us - Recognized (OL)
  • Degree of protection: IP65

Read more

  • Nominal size: 4 mm
  • Exhaust-air function: With flow control option
  • Sealing principle: Soft
  • Mounting position: Optional
  • Manual override: Detenting via accessory
  • Type of piloting: Pilot actuated
  • Pilot air supply: External
  • Flow direction: Reversible
  • Pilot pressure: 0.3 MPa to 8 bar
  • Switching time off: 20 ms
  • Switching time on: 16 ms
  • Duty cycle: 100% in conjunction with holding current reduction
  • Max. positive test pulse with 0 signal: 1200 ms
  • Max. negative test pulse with 1 signal: 900 ms
  • Characteristic coil data: 24 V DC: 1.28 W
  • Permissible voltage fluctuations: -15%/+10%
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium: Lubricated operation possible
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: -5°C to 50°C
  • Pilot medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient temperature: -5°C to 50°C
  • Electrical connection: 2-pin
  • Type of mounting: With through-hole
  • Pilot exhaust port 82: M3
  • Pilot exhaust port 84: M3
  • Pilot air port 12: M3
  • Pilot air port 14: M3
  • Pneumatic connections: Port 1, 2, 4: M5; Port 3, 5: M7
  • Note on materials: RoHS-compliant
  • Material seals: NBR
  • Material housing: Die-cast aluminium


Product

Manufacturer Material ID -
CPE10-M1BH-5/3GS-M5-B
Net Weight -
0.75kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
QU
Minimum Order Quantity -
1
UNSPSC -
26121629

Technical Specification

Cable type -
Multi-core
Number of poles -
8
Continuity resistance -
3 Milli-Ohm
Material of contact surface -
Gold
Material of cable sheath -
Polyurethane (PUR)
Type of electrical connection, box-sided -
M8
Type of electrical connection, field-sided -
M8
Positioning cable feed, box-sided -
Straight
Positioning cable feed, field-sided -
Straight
Type of plug-in contact, field sided -
Female (bus)
Material contact body -
CuZn
Colour cable sheath -
Yellow
Type of plug-in contact, box-sided -
Male (plug)
Cable length -
20 Metre
Degree of protection (IP rating) -
IP67
Halogen free -
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Rated current In -
1.5 Ampere
Rated voltage -
30 Volt
