6AG11326BD207BA0

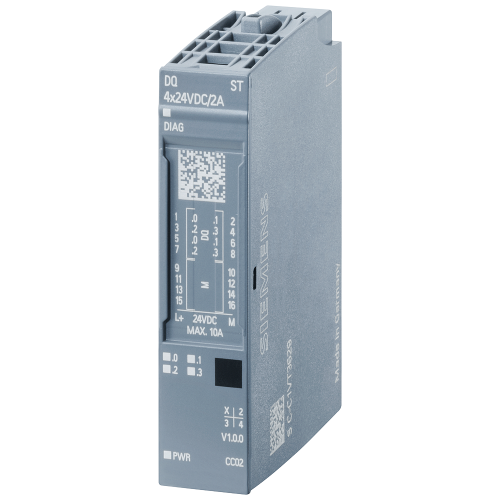

SIPLUS ET 200SP, digital output module, DQ 4x 24VDC/2A Standard, -40...+70 °C Start-up -25 °C with

Manufacturer's No: 6AG1132-6BD20-7BA0     Manufacturer: Siemens
SIPLUS ET 200SP, digital output module, DQ 4x 24VDC/2A Standard, -40...+70 °C Start-up -25 °C with

Availability On Request

POA
  • Product: SIPLUS ET 200SP DQ 4x24VDC/2A Standard
  • Model: 6ES7132-6BD20-0BA0
  • Conformal coating for harsh environments
  • Temperature range: -40°C to +70°C
  • Digital output module with 4 channels
  • Suitable for BU type A0
  • Color code: CC02
  • Channel diagnostics included

Accessories

Product video
Product video


Product

Manufacturer Material ID -
6AG1132-6BD20-7BA0
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Input current at signal 1 -
- Milliampere
Type of voltage (input voltage) -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
0.05 Millisecond
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Type of digital output -
Other
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Digital outputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
73 Millimetre
Number of digital inputs -
0
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
2 Ampere
Permitted voltage at output -
19.2 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
Supply voltage DC -
19.2 Volt
System accessory -
Time delay at signal change -
0.05 Millisecond
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Width -
15 Millimetre

Availability On Request

POA
