6AV78632TB100AA0

SIMATIC Flat Panel (1280 x 800) 15" TOUCH EXTENDED features, (30M), 24vdc/100-240VAC, DisplayPort/DVI incl. Cables

Manufacturer's No: 6AV7863-2TB10-0AA0     Manufacturer: Siemens
SIMATIC Flat Panel (1280 x 800) 15" TOUCH EXTENDED features, (30M), 24vdc/100-240VAC, DisplayPort/DVI incl. Cables

Availability On Request

POA
  • 15" SIMATIC Flat Panel Display
  • Resolution: 1280 x 800 pixels
  • Touchscreen functionality
  • Extended version with a range of up to 30 meters
  • Power supply: 24 V DC and 100-240 V AC
  • Interface: DisplayPort/DVI
  • Includes DVI/USB cable (1.8 meters)


Product

Manufacturer Material ID -
6AV7863-2TB10-0AA0
Net Weight -
4.70kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43211900

Technical Specification

Horizontal frequency -
- kiloHertz
Frame frequency -
- kiloHertz
Number of grey-scales/blue-scales of display -
-
Built-in depth -
62.5 Millimetre
Operation temperature -
0 Degrees celsius
Front build in possible -
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Front built-in possible -

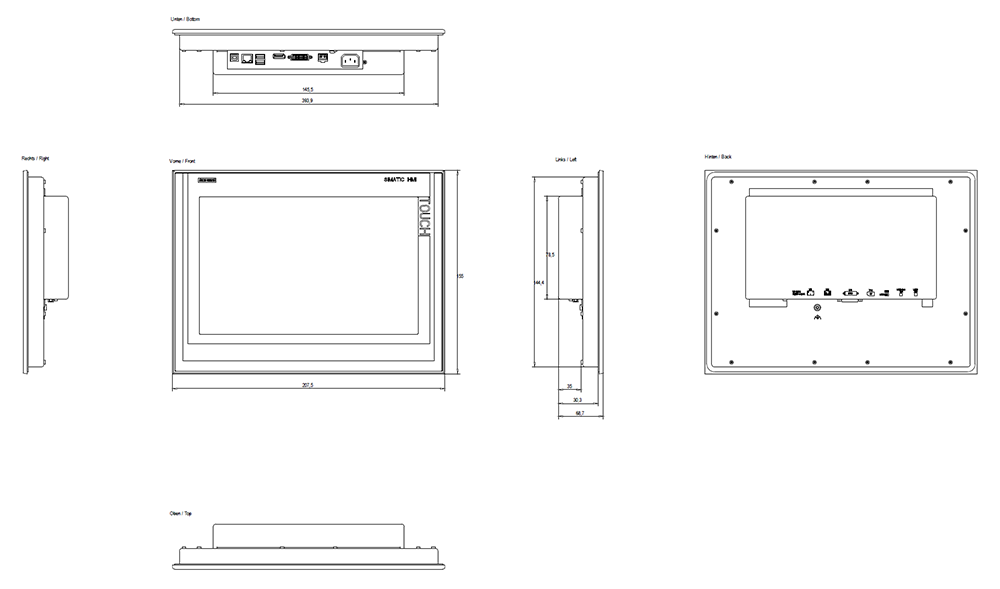

Height of the front -
310 Millimetre
Number of colours of the display -
16777216
Number of function buttons -
0
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Operating temperature -
0 Degrees celsius
Recess depth -
62.5 Millimetre
Screen diagonal -
15.4 inch
Supply voltage AC 50 Hz -
90 Volt
Supply voltage AC 60 Hz -
90 Volt
Supply voltage DC -
19.2 Volt
Voltage type of supply voltage -
AC/DC
Width of the front -
415 Millimetre
With colour display -
With HW-interface digital video signal -
With HW-interface USB -
With touch screen -
-
- 15" SIMATIC Flat Panel Display - Resolution: 1280 x 800 pixels - Touchscreen functionality - Extended version with a range of up to 30 meters - Power supply: 24 V DC and 100-240 V AC - Interface: DisplayPort/DVI - Includes DVI/USB cable (1.8 meters)

Availability On Request

POA
