6ES71384FC010AB0

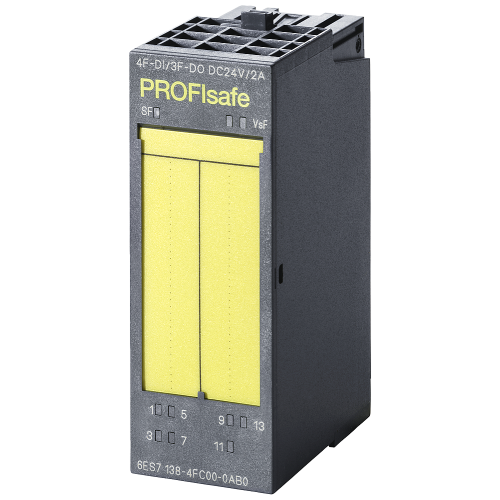

ET200S 4 F digital inputs / 3 F digital outputs failsafe, 24V

Manufacturer's No: 6ES7138-4FC01-0AB0     Manufacturer: Siemens
ET200S 4 F digital inputs / 3 F digital outputs failsafe, 24V

Availability On Request

POA
  • Input: 4 digital inputs, 24V DC
  • Output: 3 digital outputs, 24V DC, 2A
  • Safety: Failsafe design, PROFIsafe certified
  • Compatibility: Suitable for use with SIMATIC DP and PROFINET configuration
  • Certification: Category 3 (EN 954-1), SIL2 (IEC61508), PLD (ISO13849)

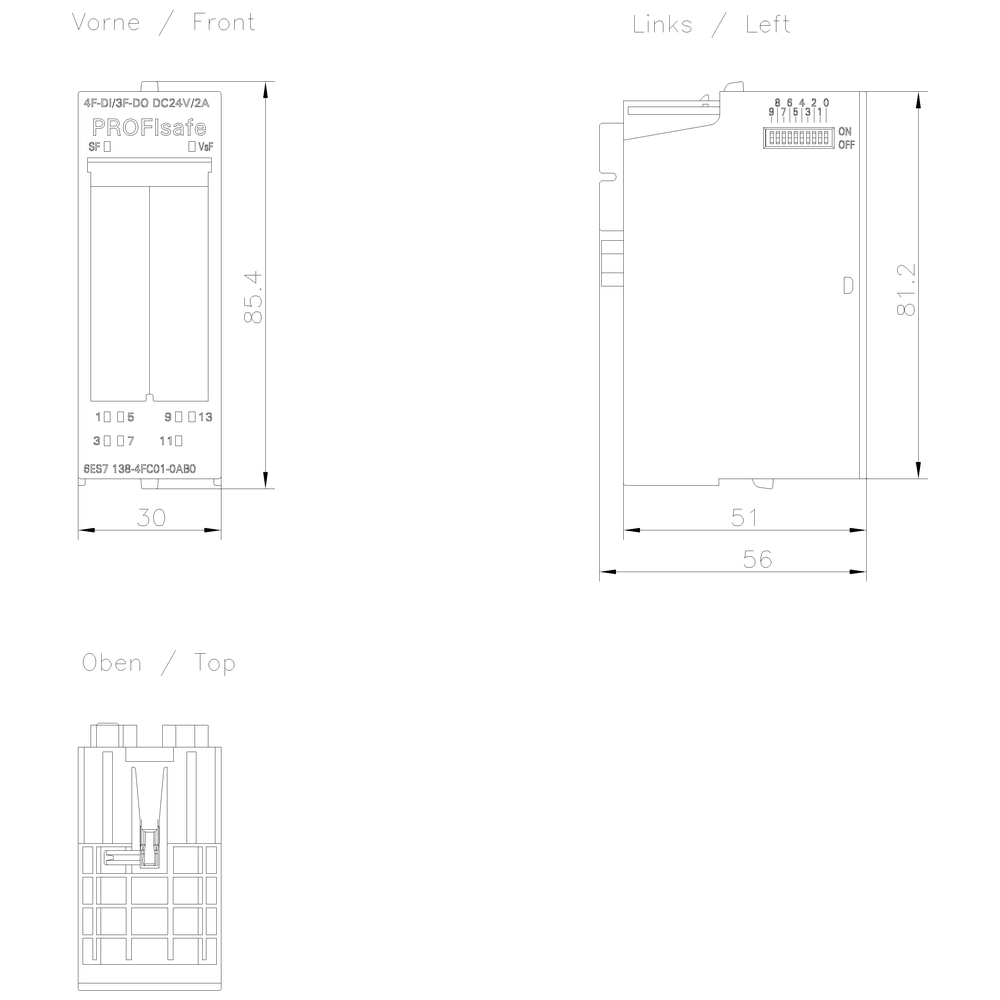

  • Dimensions: 30mm overall width
  • Additional Feature: Can be used with IM 151-3 HF

Accessories



Product

Manufacturer Material ID -
6ES7138-4FC01-0AB0
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Siemens
Output current -
- Ampere
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
Time delay at signal exchange -
2.6 Millisecond
Degree of protection (IP) -
IP20
Category according to EN 954-1 -
3
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level d
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Performance level acc. to EN ISO 13849-1 -
Level d
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Digital inputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
81 Millimetre
Input current at signal 1 -
3.5 Milliampere
Number of digital inputs -
4
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
-30 Volt
Rail mounting possible -
SIL according to IEC 61508 -
2
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
System accessory -
Time delay at signal change -
2.6 Millisecond
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
30 Millimetre
