6ES71511CA003BL0

ET200S 16DI/16x digital outputs, Profibus DP + 16DI & 16x digital outputs, 24Vdc / 0.5 A, Max 12 Modules

Manufacturer's No: 6ES7151-1CA00-3BL0     Manufacturer: Siemens
ET200S 16DI/16x digital outputs, Profibus DP + 16DI & 16x digital outputs, 24Vdc / 0.5 A, Max 12 Modules

Availability On Request

POA
  • Input: 16 digital inputs
  • Output: 16 digital outputs
  • Communication: Profibus DP
  • Power Supply: 24V DC, 0.5A
  • Response Time: 3ms
  • Expansion: Up to 12 modules
  • Model: ET 200S Compact
  • Compatibility: Not compatible with F modules

Accessories



Product

Manufacturer Material ID -
6ES7151-1CA00-3BL0
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
1.2 Millisecond
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Degree of protection (IP rating) -
IP20

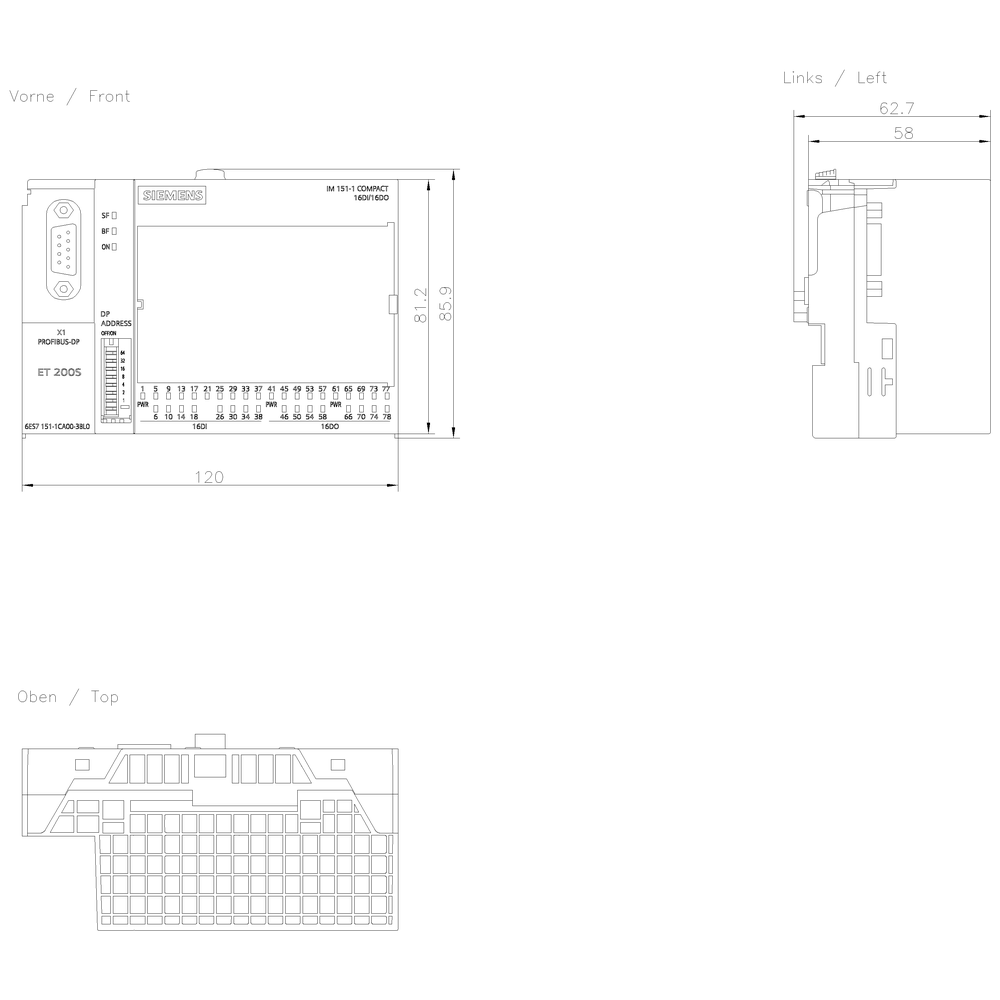

Depth -
58 Millimetre
Digital inputs configurable -
Digital outputs configurable -
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
81 Millimetre
Input current at signal 1 -
3 Milliampere
Number of digital inputs -
16
Number of digital outputs -
16
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
0.5 Ampere
Permitted voltage at input -
-3 Volt
Permitted voltage at output -
0 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFIBUS -
System accessory -
Time delay at signal change -
1.2 Millisecond
Type of digital output -
Transistor
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
120 Millimetre

Availability On Request

POA
