6ES71513AA230AB0

IM151-3 PN Std. **, PROFINET up to 100 Mbit/s, Max 63 Modules, 2 port Switch

Manufacturer's No: 6ES7151-3AA23-0AB0     Manufacturer: Siemens
IM151-3 PN Std. **, PROFINET up to 100 Mbit/s, Max 63 Modules, 2 port Switch

Availability On Request

POA
  • Model: IM151-3 PN Std.
  • Communication: PROFINET up to 100 Mbit/s
  • Max Modules: 63
  • Switch: 2-port
  • Compatibility: SIMATIC DP
  • Interface Module for ET 200S
  • Max Transmission Rate: 100 Mbit/s
  • Max Width for Modules: Up to 2 meters
  • Bus Connections: 2x RJ45
  • Termination Module: Included

Accessories



Product

Manufacturer Material ID -
6ES7151-3AA23-0AB0
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP) -
IP20
Front build in possible -
Degree of protection (IP rating) -
IP20

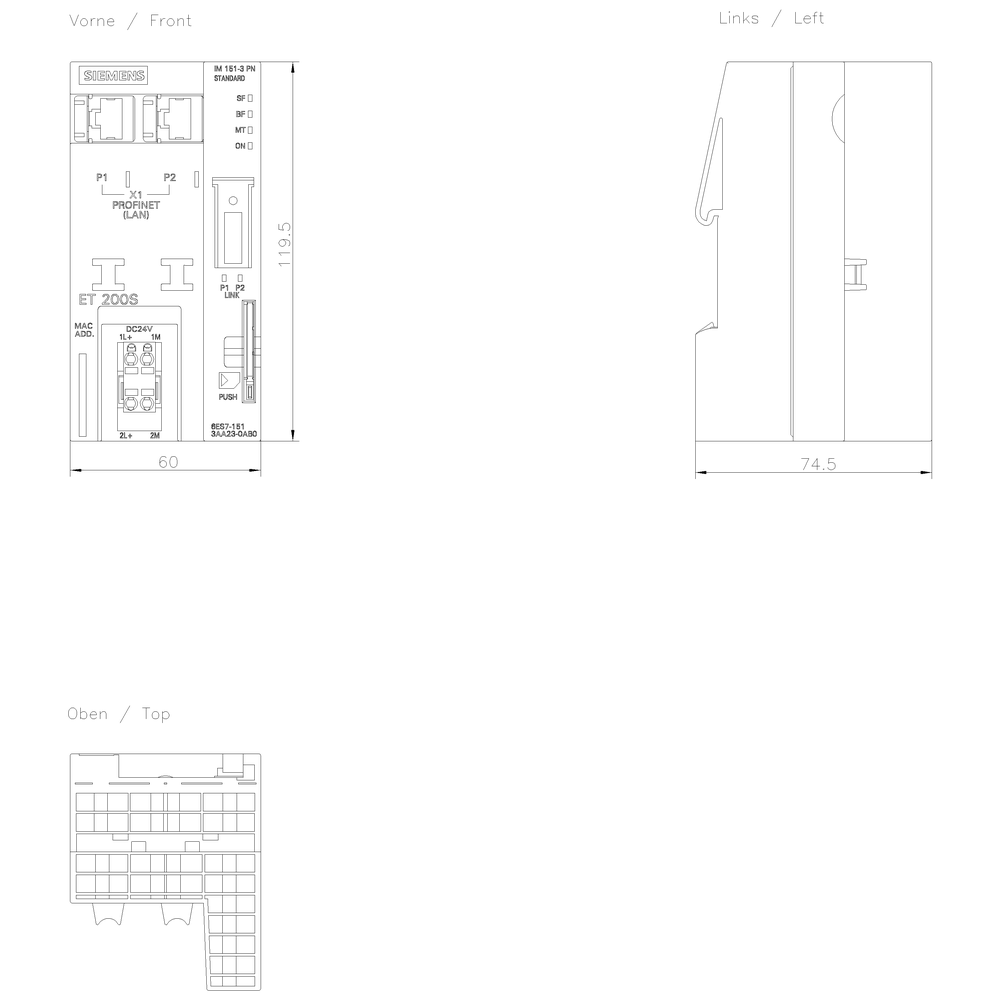

Depth -
75 Millimetre
Height -
119.5 Millimetre
Rail mounting possible -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFINET IO -
System accessory -
Voltage type of supply voltage -
DC
Width -
60 Millimetre
With potential separation -

Availability On Request

POA
