6ES76772AA310EB0

CPU 1515SP PC (4 GB RAM)

Manufacturer's No: 6ES7677-2AA31-0EB0     Manufacturer: Siemens
CPU 1515SP PC (4 GB RAM)

Availability On Request

POA
  • CPU 1515SP PC with 4 GB RAM
  • 30 GB CFAST storage with WES 7 E 32-bit pre-installed
  • S7-1500 software controller CPU 1505SP F pre-installed
  • Interfaces: 1x CFAST slot, 1x SD/MMC slot, 1x ET 200SP bus adapter connection
  • 1x 10/100/1000 Mbit/s Ethernet port
  • 3x USB ports
  • 1x DVI-I graphics card connection
  • Documentation and Restore DVD included

Selectable mandatory product

Product video
Product video


Product

Manufacturer Material ID -
6ES7677-2AA31-0EB0
Net Weight -
1.07kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5D992
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Type of electric connection -
UN
Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Output voltage at DC -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. output current DC -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Max. input current DC -
- Ampere
Performance level acc. EN ISO 13849-1 -
UN
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
With bus coupler for modular station connection -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
1
Bus coupler for modular station connection available -
Degree of protection (IP rating) -
IP20

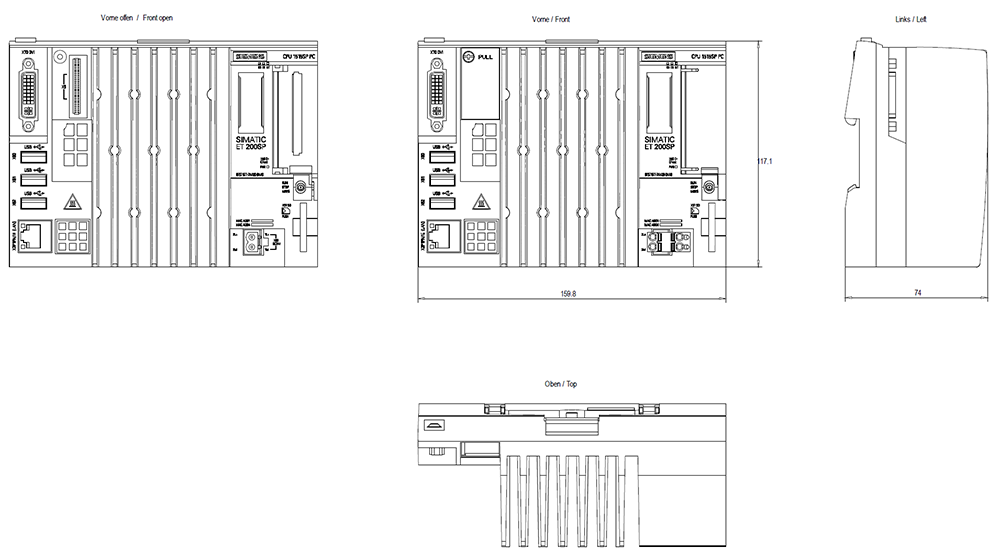

Depth -
75 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
117 Millimetre
Input voltage at DC -
19.2 Volt
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
3
Number of HW-interfaces Wireless -
0
Number of slots -
64
Rail mounting possible -
Supporting protocol for MODBUS -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
160 Millimetre
With integrated power supply -
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -
