6FB11111AT201AT1

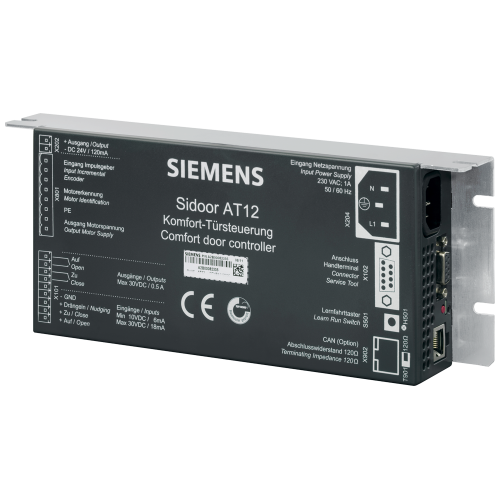

SIDOOR AT12 elevator door drive - SIDOOR control device AT12 with integrated switch mode power supply

Manufacturer's No: 6FB1111-1AT20-1AT1     Manufacturer: Siemens
SIDOOR AT12 elevator door drive - SIDOOR control device AT12 with integrated switch mode power supply

Availability On Request

POA
  • Control device for elevator doors
  • Designed for horizontal doors up to 120 kg
  • Power supply: 230V AC
  • Interfaces: 1RS485, 3DI, 2Relay, 124VDC Out
  • Operating temperature range: 0 to +50°C


Product

Manufacturer Material ID -
6FB1111-1AT20-1AT1
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Nominal electricity consumption -
- Ampere
Supply voltage DC -
- Volt
Degree of protection (IP) -
IP20
Serial interface -
Type of power supply -
Internal
Control exits -
Control inputs -
Degree of protection (IP rating) -
IP20
Input current per DC input -
0.006 Ampere
Input voltage per DC input -
10 Volt
Manufacturer specific system components required -
Max. door/gate weight -
120 Kilogram
Max. door/gate width -
2400 Millimetre
Max. opening cycles per hour -
0.05
Max. output current DC -
0.12 Ampere
Model -
Control device
Nominal power consumption -
80 Watt
Rated frequency -
50 Hertz
Supply voltage AC -
230 Volt

Availability On Request

POA
