6SL35171BE163AM0

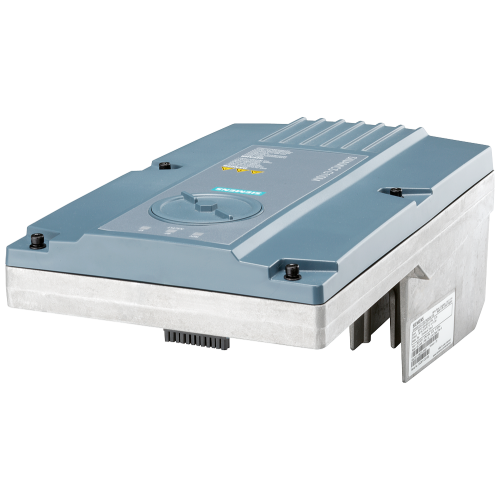

PM240M - 2.2kW, With Filter (FSB)

Manufacturer's No: 6SL3517-1BE16-3AM0     Manufacturer: Siemens
PM240M - 2.2kW, With Filter (FSB)

Availability On Request

POA
  • Model: PM240M
  • Power: 2.2 kW
  • Integrated Class A filter (FSB)
  • Degree of protection: IP65
  • Voltage: 380-480 V, 3 AC +/-10%, 47-63 Hz
  • Power overload: 2.2 kW at 200% for 3s, 150% for 57s, 100% for 240s
  • SD/MMC card slot
  • Ambient temperature: -10 to +55°C
  • Dimensions: 135 x 181 x 309 mm (HxWxD)
  • FSB without Control Unit


Product

Manufacturer Material ID -
6SL3517-1BE16-3AM0
Net Weight -
3.47kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
AL: 9I999 / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Type of converter -
UN
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP66
Mains frequency -
50/60 Hz
Degree of protection (IP rating) -
IP66
Depth -
309 Millimetre
Height -
135 Millimetre
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
2.2 Kilowatt
Max. output frequency -
550 Hertz
Number of phases input -
3
Number of phases output -
3
Relative symmetric net voltage tolerance -
10 Percentage
Width -
181 Millimetre
-
- Model: PM240M - Power: 2.2 kW - Integrated Class A filter (FSB) - Degree of protection: IP65 - Voltage: 380-480 V, 3 AC +/-10%, 47-63 Hz - Power overload: 2.2 kW at 200% for 3s, 150% for 57s, 100% for 240s - SD/MMC card slot - Ambient temperature: -10 to +55°C - Dimensions: 135 x 181 x 309 mm (HxWxD) - FSB without Control Unit Millimetre

Availability On Request

POA
